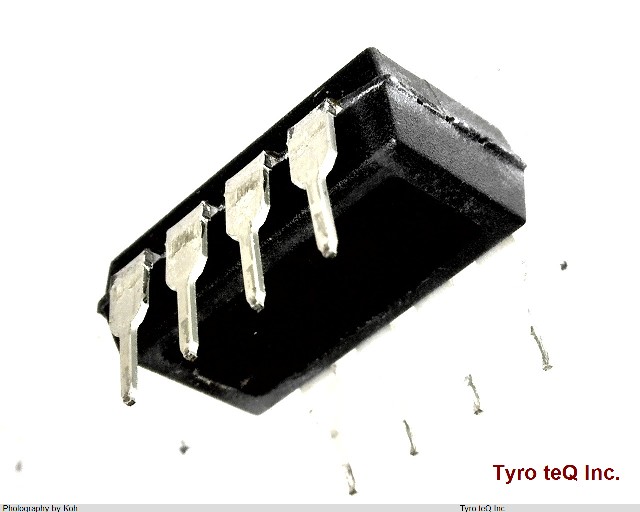

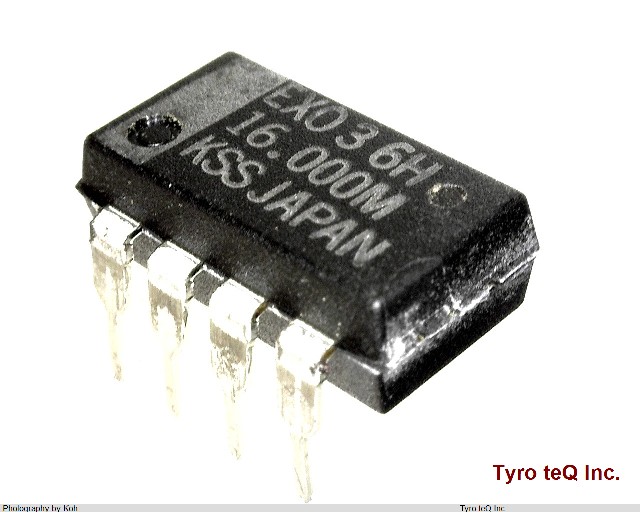

KCEXO3-16.0000C51B00

Name: KCEXO3-16.0000C51B00
Brand: KYOCERA
SKU: 210037270-0000-0000-0000

KCEXO3-16.0000C51B00 - KYOCERA の商品詳細ページです。

２営業日以内に回答いたします

KCEXO3-16.0000C51B00 の詳細情報

型番	KCEXO3-16.0000C51B00
メーカー	KYOCERA
Additional Feature	ENABLE/DISABLE FUNCTION
Fall Time-Max	15 ns
Frequency Adjustment-Mechanical	NO
Frequency Stability	100 %
Manufacturer Series	KCEXO3
Mounting Feature	THROUGH HOLE MOUNT
Number of Terminals	8
Operating Frequency-Max	24.576 MHz
Operating Frequency-Min	11.0592 MHz
Operating Frequency-Nom	16 MHz
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-10 Cel
Oscillator Type	CMOS
Output Load	50 pF
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	DIP8,.3
Physical Dimension	12.8mm x 7.0mm x 5.08mm
Power Supplies	5 V
Qualification Status	Not Qualified
Rise Time-Max	15 ms
Sub Category	Other Oscillators
Supply Current-Max	20 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Symmetry-Max	40/60 %
