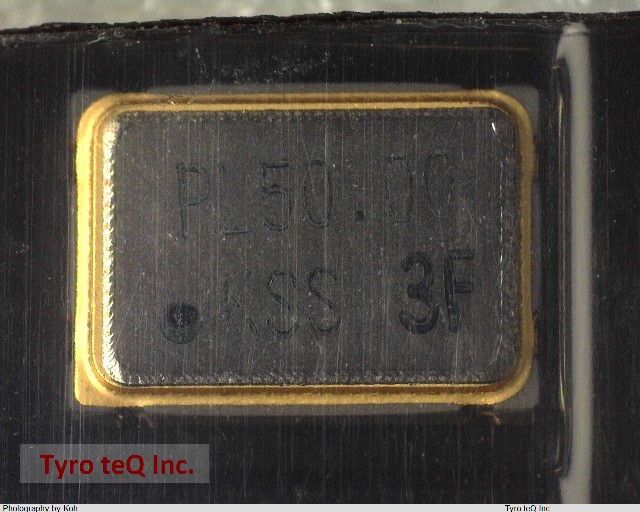

FXO-37FL50.000MHZ

Name: FXO-37FL50.000MHZ
Brand: KYOCERA
SKU: 160149165-0000-0000-0000

FXO-37FL50.000MHZ - KYOCERA の商品詳細ページです。

２営業日以内に回答いたします

FXO-37FL50.000MHZ の詳細情報

型番	FXO-37FL50.000MHZ
メーカー	KYOCERA
Additional Feature	TRI-STATE; ENABLE/DISABLE FUNCTION; PACK QTY 1000 ALSO AVAILABLE
Fall Time-Max	7 ns
Frequency Adjustment-Mechanical	NO
Frequency Stability	100 %
JESD-609 Code	e0
Manufacturer Series	FXO-37F
Mounting Feature	SURFACE MOUNT
Number of Terminals	4
Operating Frequency-Max	100 MHz
Operating Frequency-Min	50 MHz
Operating Frequency-Nom	50 MHz
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Oscillator Type	CMOS/TTL
Output Load	5 TTL, 15 pF
Package Body Material	CERAMIC
Package Equivalence Code	LCC4,.2X.28,200/150
Physical Dimension	7mm X 5mm X 1.8mm
Power Supplies	3.3 V
Qualification Status	Not Qualified
Rise Time-Max	7 ms
Sub Category	Other Oscillators
Supply Current-Max	25 mA
Supply Voltage-Max	3.45 V
Supply Voltage-Min	3.15 V
Supply Voltage-Nom	3.3 V
Symmetry-Max	60/40 %
Terminal Finish	Tin/Lead (Sn/Pb)
