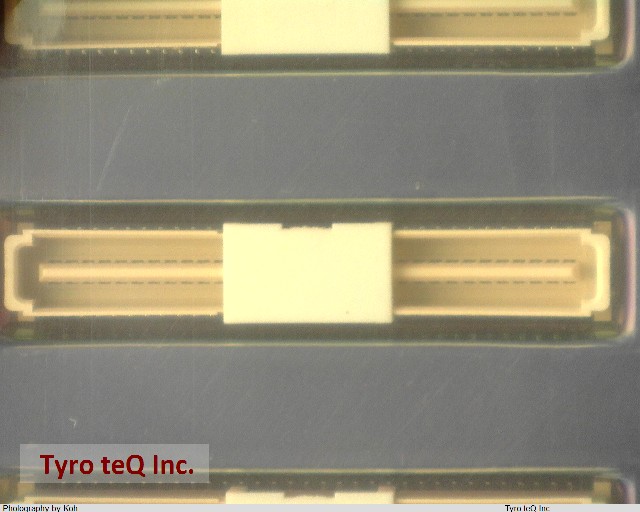

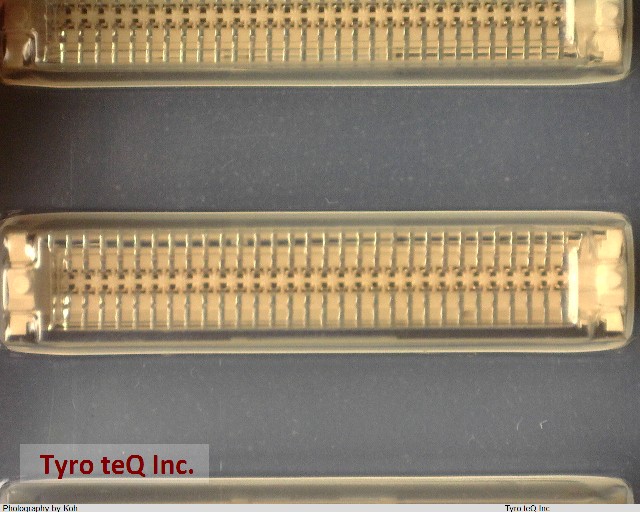

14 5015 0641 02 863

Name: 14 5015 0641 02 863
Brand: KYOCERA
SKU: 20501225-0000-0000-0000

14 5015 0641 02 863 - KYOCERA の商品詳細ページです。

２営業日以内に回答いたします

14 5015 0641 02 863 の詳細情報

型番	14 5015 0641 02 863
メーカー	KYOCERA
Additional Feature	IEEEE P-1386 STANDARD
Board Mounting Option	PEG
Body Breadth	0.236 inch
Body Depth	0.246 inch
Body Length	1.417 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	GOLD (30) OVER NICKEL
Contact Finish - Termination	GOLD (30) OVER NICKEL
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Style	CENTRONIC
DIN Conformance	NO
Dielectric Withstanding Voltage	350VAC V
Durability	100 Cycles
Filter Feature	NO
IEC Conformance	NO
Insulator Material	SYNTHETIC RESIN
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	5015
Mating Contact Pitch	0.039 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	3.683 mm
Plating Thickness	30u inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	1 mm
Termination Type	SOLDER
Total Number of Contacts	64
UL Flammability Code	94V-0
