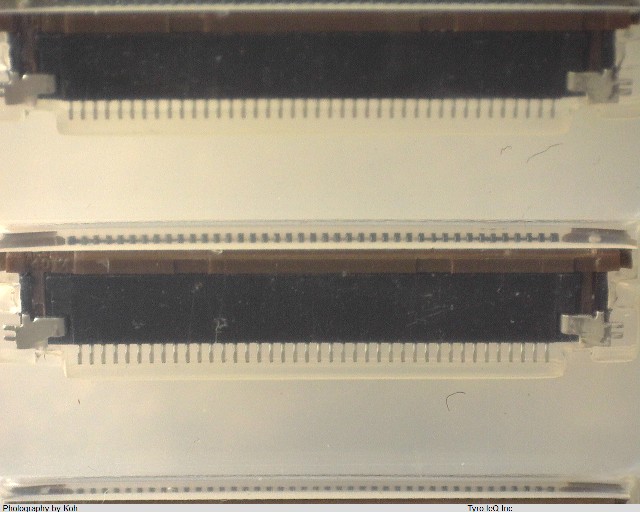

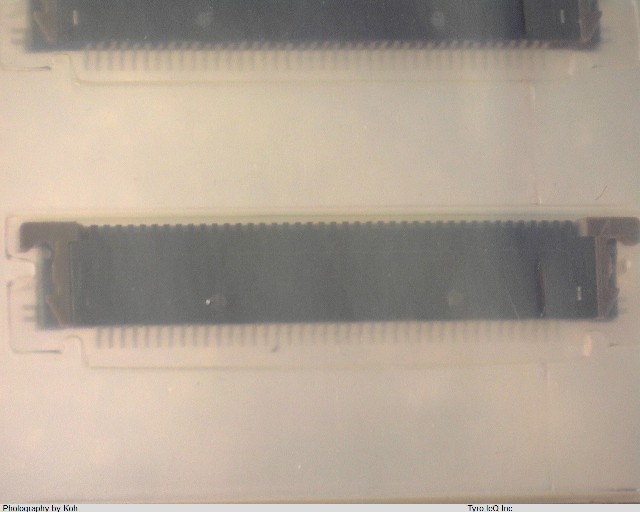

086212040340800A

Name: 086212040340800A
Brand: KYOCERA
SKU: 10076993-0000-0000-0000

086212040340800A - KYOCERA の商品詳細ページです。

２営業日以内に回答いたします

086212040340800A の詳細情報

型番	086212040340800A
メーカー	KYOCERA
Body Breadth	0.079 inch
Body Depth	0.197 inch
Body Length	1.035 inch
Connector Type	FFC/FPC CONNECTOR
Contact Gender	FEMALE
Contact Pattern	RECTANGULAR
Contact Resistance	50 mohm
Contact Style	BELLOWED TYPE
Dielectric Withstanding Voltage	200VAC V
Filter Feature	NO
Insulation Resistance	100000000 ohm
Insulator Color	BLACK
Insulator Material	POLYETHYLENE
Mating Contact Pitch	0.02 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	0.4 A
Reference Standard	UL
Terminal Pitch	0.5 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	40
UL Flammability Code	94V-0
