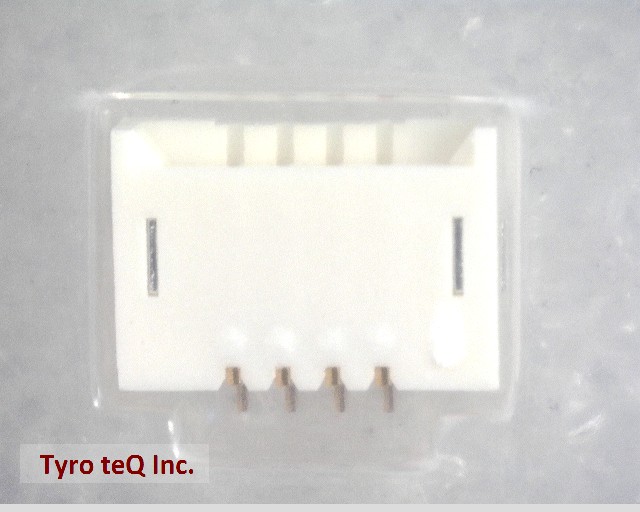

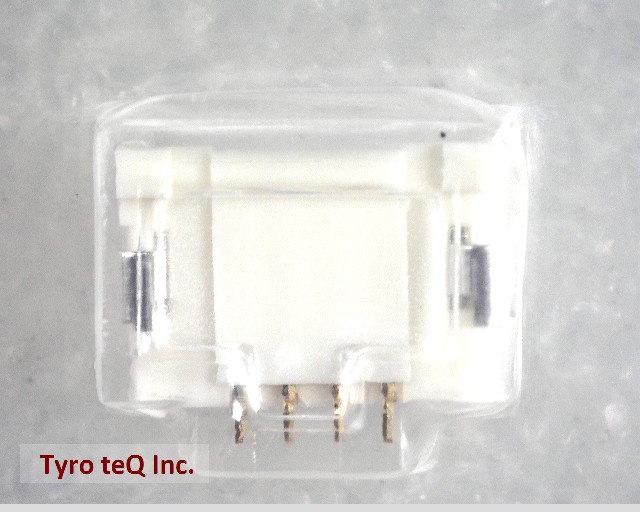

04 6227 004 100 829+

Name: 04 6227 004 100 829+
Brand: KYOCERA
SKU: 10145266-0000-0000-0000

04 6227 004 100 829+ - KYOCERA の商品詳細ページです。

２営業日以内に回答いたします

04 6227 004 100 829+ の詳細情報

型番	04 6227 004 100 829+
メーカー	KYOCERA
Body Breadth	0.079 inch
Body Depth	0.209 inch
Body Length	0.303 inch
Connector Type	FFC/FPC CONNECTOR
Contact Finish - Mating	GOLD
Contact Finish - Termination	GOLD
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Durability	20 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	3.43 N
Insulation Resistance	1000000000 ohm
JESD-609 Code	e4
MIL Conformance	NO
Mating Contact Pitch	0.039 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Terminal Pitch	1 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	4
Withdrawl Force-Min	0.28 N
