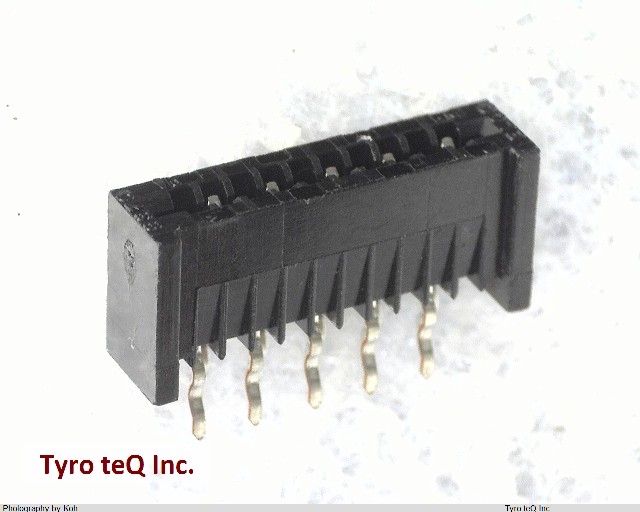

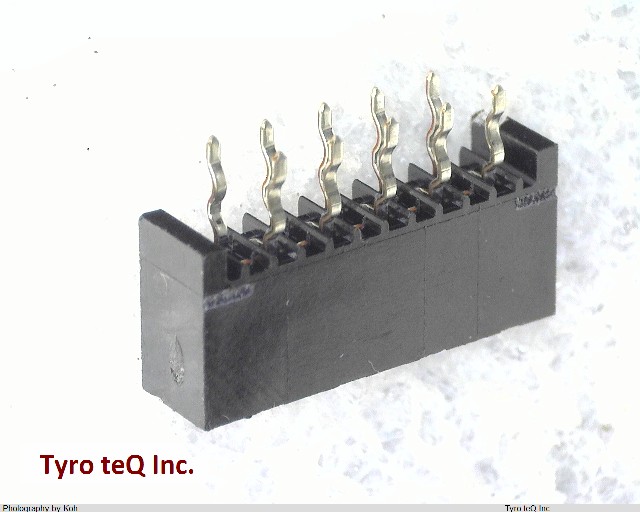

00-8370-101-000-800

Name: 00-8370-101-000-800
Brand: KYOCERA
SKU: 10144338-0000-0000-0000

00-8370-101-000-800 - KYOCERA の商品詳細ページです。

２営業日以内に回答いたします

00-8370-101-000-800 の詳細情報

型番	00-8370-101-000-800
メーカー	KYOCERA
Additional Feature	STAGGERED CONFIGURATION
Body Breadth	0.165 inch
Body Depth	0.283 inch
Body Length	0.64 inch
Connector Type	FFC/FPC CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Style	DUAL PRONG
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Durability	10 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	LIF N
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL Conformance	NO
Mating Contact Pitch	0.049 inch
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	2.4892 mm
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.118 inch
Terminal Pitch	1.25 mm
Termination Type	SOLDER
Total Number of Contacts	10
UL Flammability Code	94V-0
Withdrawl Force-Min	LIF N
