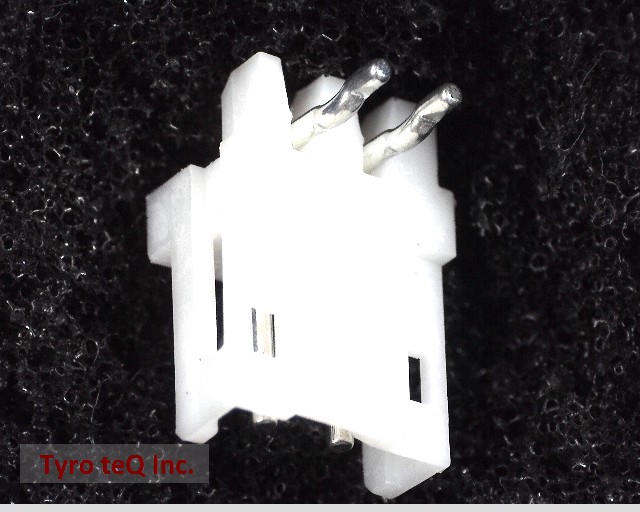

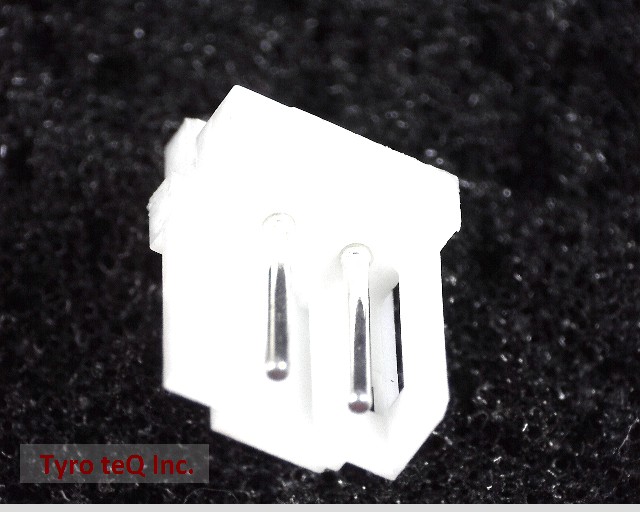

008283021100000+

Name: 008283021100000+
Brand: KYOCERA
SKU: 10146153-0000-0000-0000

008283021100000+ - KYOCERA の商品詳細ページです。

２営業日以内に回答いたします

008283021100000+ の詳細情報

型番	008283021100000+
メーカー	KYOCERA
Body Breadth	0.157 inch
Body Depth	0.346 inch
Body Length	0.228 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Gender	MALE
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	RND PIN-SKT
Dielectric Withstanding Voltage	1414VAC V
Filter Feature	NO
Insulation Resistance	1000000000 ohm
Insulator Color	NATURAL
Insulator Material	POLYAMIDE66
Mating Contact Pitch	0.079 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	3 A
Reference Standard	UL
Terminal Length	0.118 inch
Terminal Pitch	2 mm
Termination Type	SOLDER
Total Number of Contacts	2
UL Flammability Code	94V-0
Withdrawl Force-Min	0.51 N
