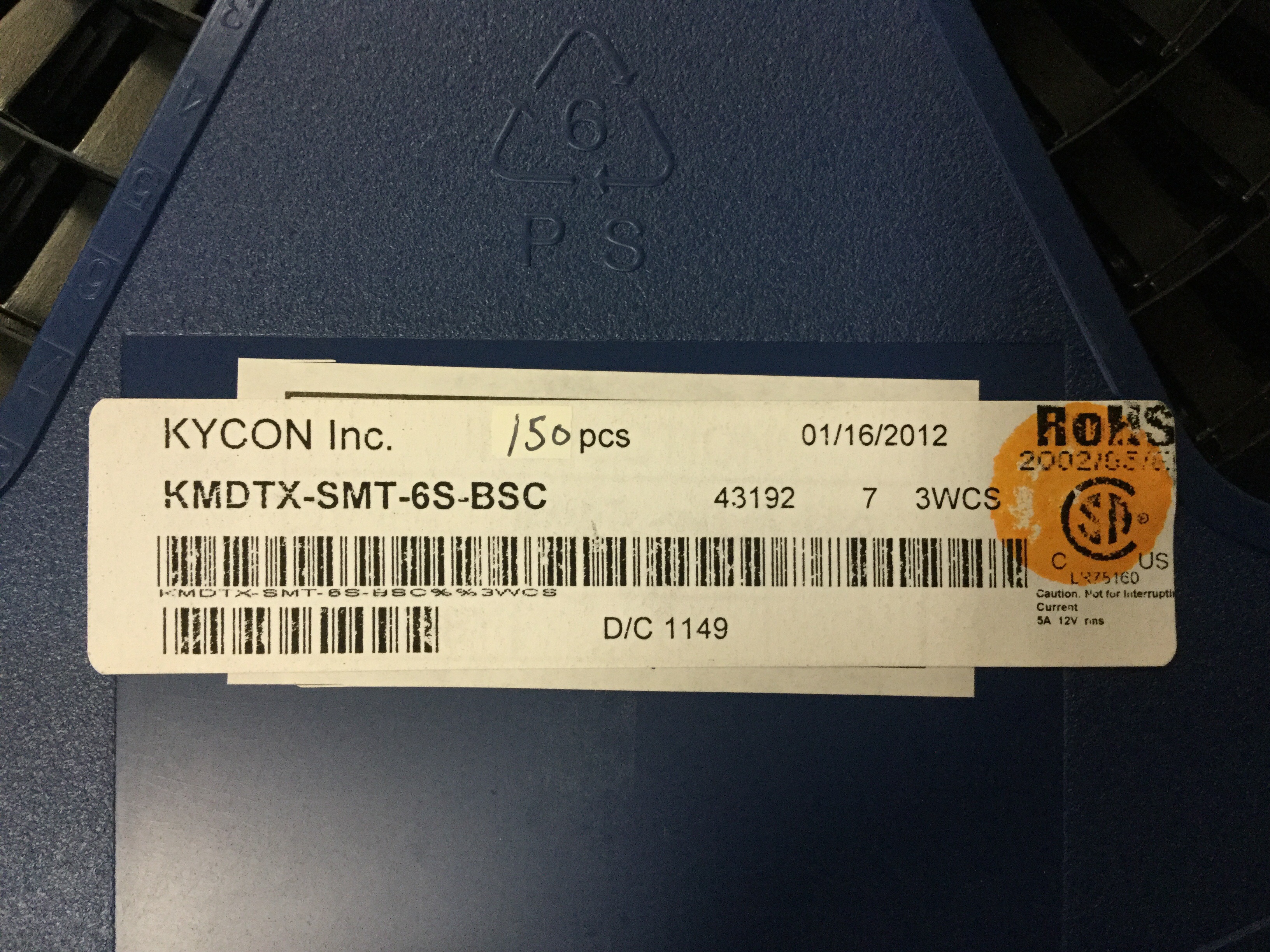

KMDTX-SMT-6S-BSC

Name: KMDTX-SMT-6S-BSC
Brand: KYCON
SKU: 210096571-0000-0000-0000

KMDTX-SMT-6S-BSC - KYCON の商品詳細ページです。

65時間16分後以内に見積もり依頼を頂ければ、
04月23日(火) 9:00 までに見積もり回答いたします。

検討リストに追加する

KMDTX-SMT-6S-BSC の詳細情報

型番	KMDTX-SMT-6S-BSC
メーカー	KYCON
Additional Feature	ROHS COMPLIANT
Body Breadth	0.512 inch
Body Depth	0.339 inch
Body Length	0.551 inch
Body/Shell Style	RECEPTACLE
Connector Type	CIRCULAR DIN CONNECTOR
Contact Finish - Mating	GOLD FLASH OVER NICKEL
Contact Finish - Termination	Tin (Sn) - with Nickel (Ni) barrier
Contact Gender	FEMALE
Contact Material	PHOSPHOR BRONZE
Contact Style	RND PIN-SKT
DIN Conformance	YES
Dielectric Withstanding Voltage	700VAC V
Durability	500 Cycles
EMI Shielded	YES
IEC Conformance	NO
Insulation Resistance	500000000 ohm
Insulator Color	BLACK
Insulator Material	POLYETHYLENE
JESD-609 Code	e3
MIL Conformance	NO
Manufacturer Series	KMDTX
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number of Ports	1
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
Plating Thickness	FLASH inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	COPPER ALLOY
Sub Category	DIN Connectors
Termination Type	SURFACE MOUNT
Total Number of Contacts	6
