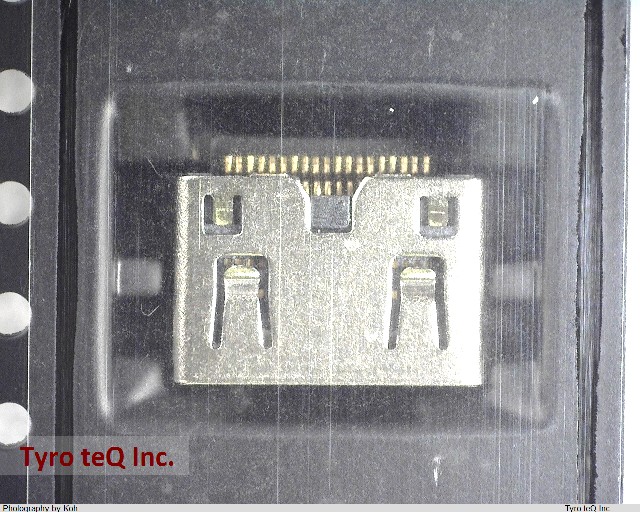

型番 | KMDMIX-NS3B-WS-BTR |
---|---|
メーカー | KYCON |
Additional Feature | SHIELDED |
Board Mounting Option | PEG |
Body Breadth | 0.126 inch |
Body Depth | 0.315 inch |
Body Length | 0.441 inch |
Body/Shell Style | RECEPTACLE |
Connector Type | TELECOM AND DATACOM CONNECTOR |
Contact Finish - Mating | NOT SPECIFIED |
Contact Gender | FEMALE |
Contact Material | NOT SPECIFIED |
Contact Resistance | 10 mohm |
DIN Conformance | NO |
Dielectric Withstanding Voltage | 700VAC V |
Durability | 10000 Cycles |
Empty Shell | NO |
Filter Feature | NO |
IEC Conformance | NO |
Insulation Resistance | 100000000 ohm |
Insulator Material | POLYETHYLENE |
MIL Conformance | NO |
Mixed Contacts | NO |
Mounting Option 1 | LOCKING |
Mounting Style | RIGHT ANGLE |
Mounting Type | BOARD |
Number Of Connectors | ONE |
Number Of PCB Rows | 1 |
Number of Ports | 1 |
Operating Temperature-Max | 85 Cel |
Operating Temperature-Min | -25 Cel |
Option | GENERAL PURPOSE |
PCB Contact Pattern | RECTANGULAR |
Plating Thickness | 30u inch |
Polarization Key | POLAR PIN POSITION |
Rated Current (Signal) | 0.5 A |
Reference Standard | UL |
Reliability | COMMERCIAL |
Shell Finish | NICKEL |
Sub Category | Telecom and Datacom Connectors |
Terminal Pitch | .4064 mm |
Termination Type | SURFACE MOUNT |
Total Number of Contacts | 19 |
UL Flammability Code | 94V-0 |
