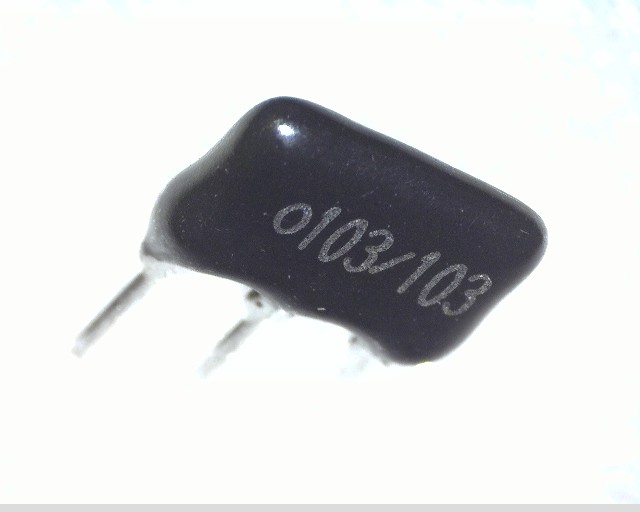

MRPL03ETD103/103DB データシート

Name: MRPL03ETD103/103DB
Brand: KOA
SKU: 230728737-0000-0000-0000

MRPL03ETD103/103DB - KOA の商品詳細ページです。

２営業日以内に回答いたします

MRPL03ETD103/103DB の詳細情報

型番	MRPL03ETD103/103DB
メーカー	KOA
データシート
Construction	Rectangular
Element Power Dissipation	0.1 W
First Element Resistance	10000 ohm
JESD-609 Code	e1
Lead Length	3 mm
Mounting Feature	THROUGH HOLE MOUNT
Network Type	DIVIDER
Number of Elements	2
Number of Functions	1
Number of Terminals	3
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Package Height	6.5 mm
Package Length	8.5 mm
Package Shape	RECTANGULAR PACKAGE
Package Style	SIP Meter
Package Width	2.5 mm
Packing Method	Bulk
Rated Power Dissipation (P)	0.2 W
Rated Temperature	70 Cel
Resistor Type	ARRAY/NETWORK RESISTOR
Second/Last Element Resistance	10000 ohm
Sub Category	Array/Network Resistors
Technology	METAL FILM
Temperature Coefficient	25 ppm/Cel
Temperature Coefficient Tracking	10 ppm/Cel
Terminal Finish	TIN SILVER COPPER
Terminal Shape	FLAT
Tolerance	0.5 %
Working Voltage	100 V
