CCF1N0.5 データシート

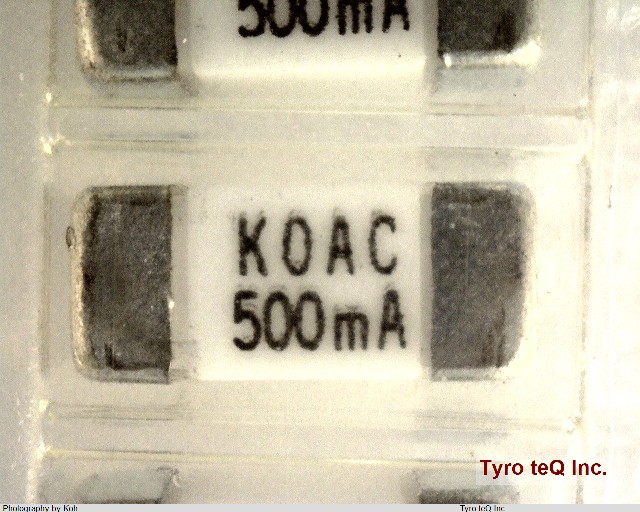

Name: CCF1N0.5
Brand: KOA
SKU: 400037348-0000-0000-0000

CCF1N0.5 - KOA の商品詳細ページです。

２営業日以内に回答いたします

CCF1N0.5 の詳細情報

型番	CCF1N0.5
メーカー	KOA
データシート
Additional Feature	RATED BREAKING CAPACITY AT 60 VDC: 50 A
Blow Characteristic	NORMAL
Body Breadth	2.5 inch
Body Height	2.5 mm
Body Length or Diameter	6 mm
Circuit Protection Type	ELECTRIC FUSE
Fuse Size	2410
JESD-609 Code	e0
Joule-integral-Nom	0.03 J
Mounting Feature	SURFACE MOUNT
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Packing Method	BULK
Physical Dimension	6mm x 2.5mm x 2.5mm
Rated Breaking Capacity	50 A
Rated Current	0.5 A
Rated Voltage(AC)	125 V
Rated Voltage(DC)	60 V
Reference Standard	CSA; MITI; UL
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape	END CAP
