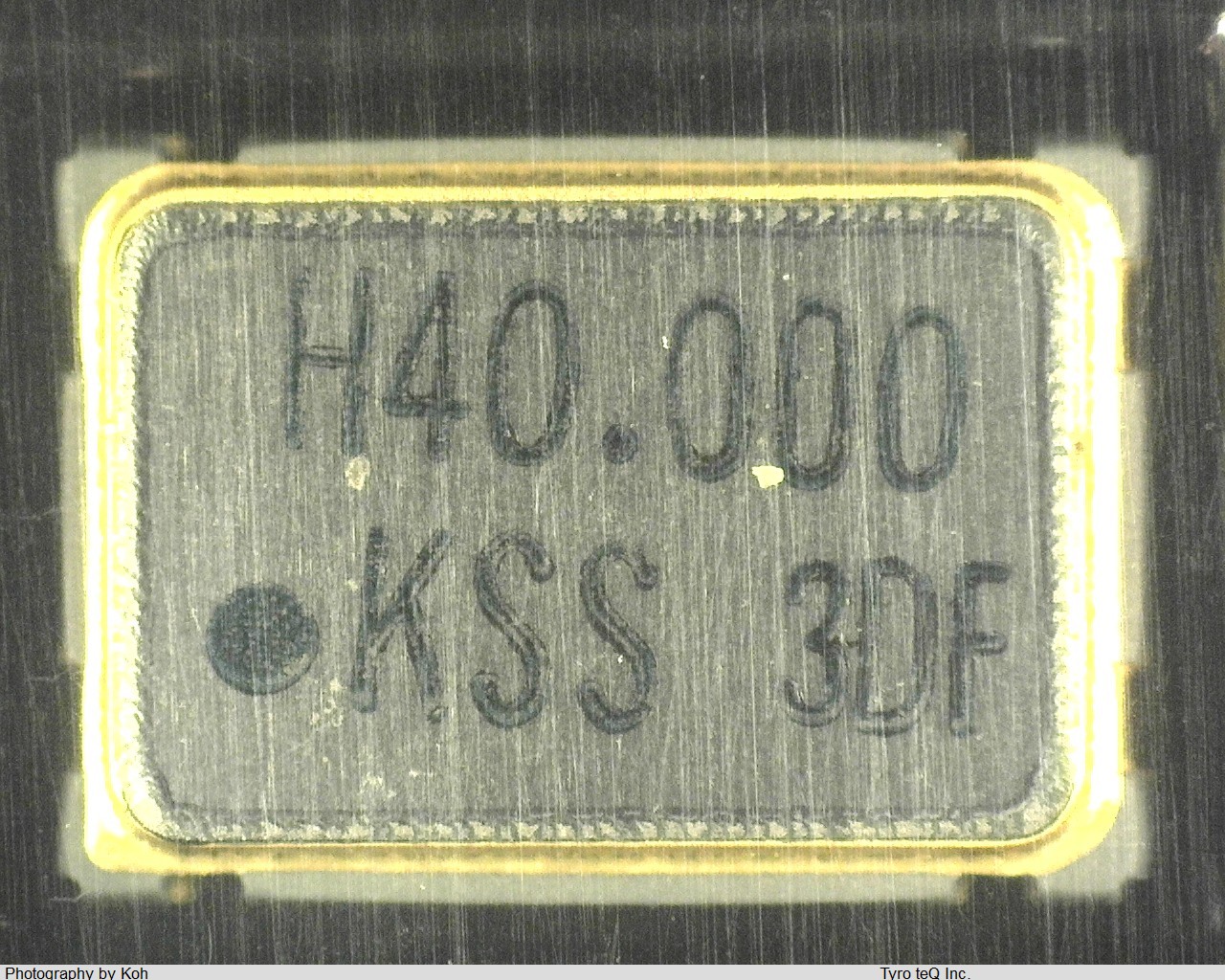

FXO-31FH40.000MHZ

Name: FXO-31FH40.000MHZ
Brand: KINSEKI
SKU: 160000188-0000-0000-0000

FXO-31FH40.000MHZ - KINSEKI の商品詳細ページです。

No Image

２営業日以内に回答いたします

FXO-31FH40.000MHZ の詳細情報

型番	FXO-31FH40.000MHZ
メーカー	KINSEKI
Additional Feature	TRI-STATE; ENABLE/DISABLE FUNCTION; 1000PCS PER REEL ALSO AVAILABLE
Fall Time-Max	10 ns
Frequency Adjustment-Mechanical	NO
Frequency Stability	100 %
Manufacturer Series	FXO-31F
Mounting Feature	SURFACE MOUNT
Number of Terminals	4
Operating Frequency-Max	50 MHz
Operating Frequency-Min	1.8 MHz
Operating Frequency-Nom	40 MHz
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-10 Cel
Oscillator Type	CMOS
Output Load	10 TTL, 50 pF
Package Body Material	CERAMIC
Package Equivalence Code	LCC4,.2X.28,200/150
Physical Dimension	7.0mm x 5.0mm x 1.8mm
Power Supplies	5 V
Qualification Status	Not Qualified
Rise Time-Max	10 ms
Sub Category	Other Oscillators
Supply Current-Max	45 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Symmetry-Max	60/40 %
