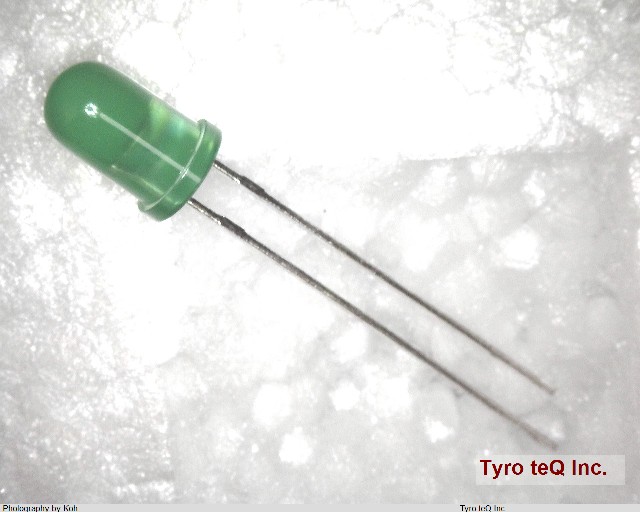

L-7113PGD
1
-
- 個
２営業日以内に回答いたします
L-7113PGD の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | L-7113PGD |
|---|---|
| メーカー | KINGBRIGHT |
| Additional Feature | HIGH RELIABILITY |
| Color | PURE GREEN |
| Color@wavelength | Green |
| Configuration | SINGLE |
| Forward Current-Max (A) | 0.025 |
| Forward Voltage-Max (V) | 2.5 |
| Lens Type | DIFFUSED GREEN |
| Luminous Intensity-Min (cd) | 30 |
| Luminous Intensity-Nom (mcd) | 5.0 |
| Mounting Feature | RADIAL MOUNT |
| Number of Functions | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Optoelectronic Device Type | SINGLE COLOR LED |
| Overall Height (mm) | 8.6 |
| Packing Method | TR |
| Peak Wavelength (nm) | 555 |
| Reverse Voltage-Max (V) | 5 |
| Shape | ROUND |
| Size (mm) | 5 |
| Sub Category | Visible LEDs |
| T-code | T-1 3/4 |
| Terminal Pitch (mm) | 2.54 |
| Viewing Angle (deg) | 30 |
| 会社名称 | Kingbright Elec. Co., Ltd. |
|---|---|
| 設立 | 1980 |
| 所在地 | 3F., No.317-1, Sec. 2, Zhongshan Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) |
| URL | http://www.kingbright.com/ |
