L-63GD
1
-
- 個
２営業日以内に回答いたします
L-63GD の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | L-63GD |
|---|---|
| メーカー | KINGBRIGHT |
| Additional Feature | HIGH RELIABILITY |
| Color | GREEN |
| Color@wavelength | Green |
| Configuration | SINGLE |
| Forward Current-Max | 0.025 A |
| Forward Voltage-Max | 2.8 V |
| JESD-609 Code | e0 |
| Lens Type | DIFFUSED |
| Luminous Intensity-Min | 160 cd |
| Luminous Intensity-Nom | 12.0 mcd |
| Mounting Feature | RADIAL MOUNT |
| Number of Functions | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |

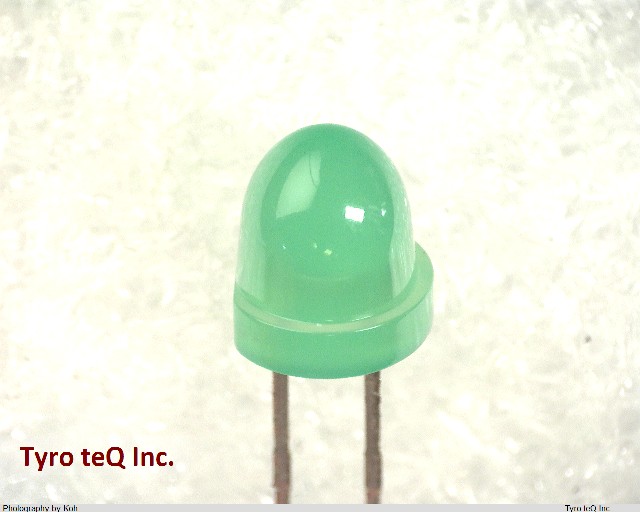

| Optoelectronic Device Type | SINGLE COLOR LED |
| Overall Height | 5.6 mm |
| Packing Method | BULK |
| Peak Wavelength | 565 nm |
| Shape | ROUND |
| Size | 5 mm |
| Sub Category | Visible LEDs |
| T-code | T-1 3/4 |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Pitch | 2.54 mm |
| Viewing Angle | 60 deg |
| 会社名称 | Kingbright Elec. Co., Ltd. |
|---|---|
| 設立 | 1980 |
| 所在地 | 3F., No.317-1, Sec. 2, Zhongshan Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) |
| URL | http://www.kingbright.com/ |
