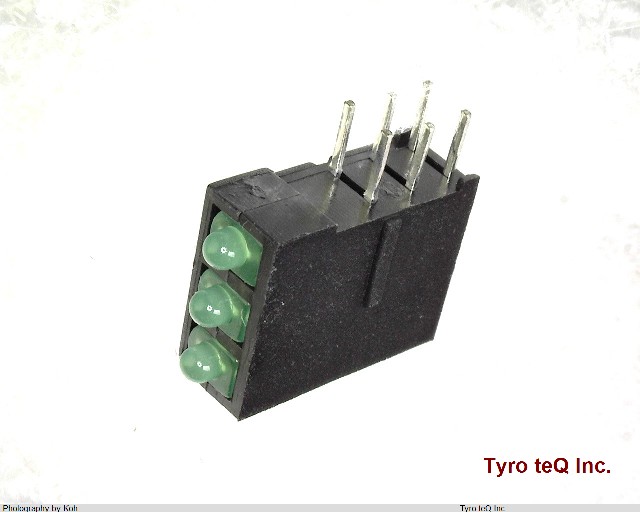

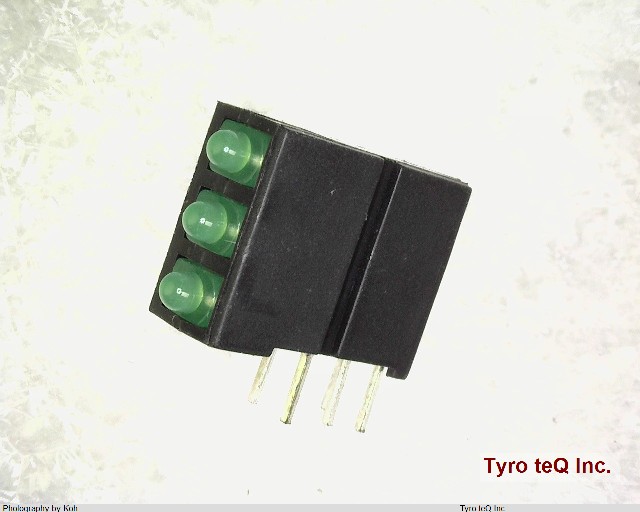

L-4060XH/3GD
1
-
- 個
２営業日以内に回答いたします
L-4060XH/3GD の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | L-4060XH/3GD |
|---|---|
| メーカー | KINGBRIGHT |
| Additional Feature | HIGH RELIABILITY |
| Color | GREEN |
| Configuration | SEPARATE, 3 ELEMENTS |
| Forward Current-Max | 0.025 A |
| Forward Current-Max (A) | 0.025 |
| Lens Type | DIFFUSED |
| Luminous Intensity-Nom | 10.0 mcd |
| Luminous Intensity-Nom (mcd) | 10.0 |
| Mounting Feature | RADIAL MOUNT |
| Number of Functions | 3 |
| Number of Terminals | 6 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Min (Cel) | -40 |
| Optoelectronic Device Type | SINGLE COLOR LED ARRAY |
| Overall Height | 10.16 mm |
| Overall Height (mm) | 10.16 |
| Packing Method | BULK |
| Peak Wavelength | 565 nm |
| Peak Wavelength (nm) | 565 |
| Shape | ROUND |
| Size | 1.8 mm |
| Size (mm) | 1.8 |
| T-code | T-3/4 |
| Terminal Pitch | 2.54 mm |
| Terminal Pitch (mm) | 2.54 |
| Viewing Angle | 70 deg |
| Viewing Angle (deg) | 70 |
| 会社名称 | Kingbright Elec. Co., Ltd. |
|---|---|
| 設立 | 1980 |
| 所在地 | 3F., No.317-1, Sec. 2, Zhongshan Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) |
| URL | http://www.kingbright.com/ |
