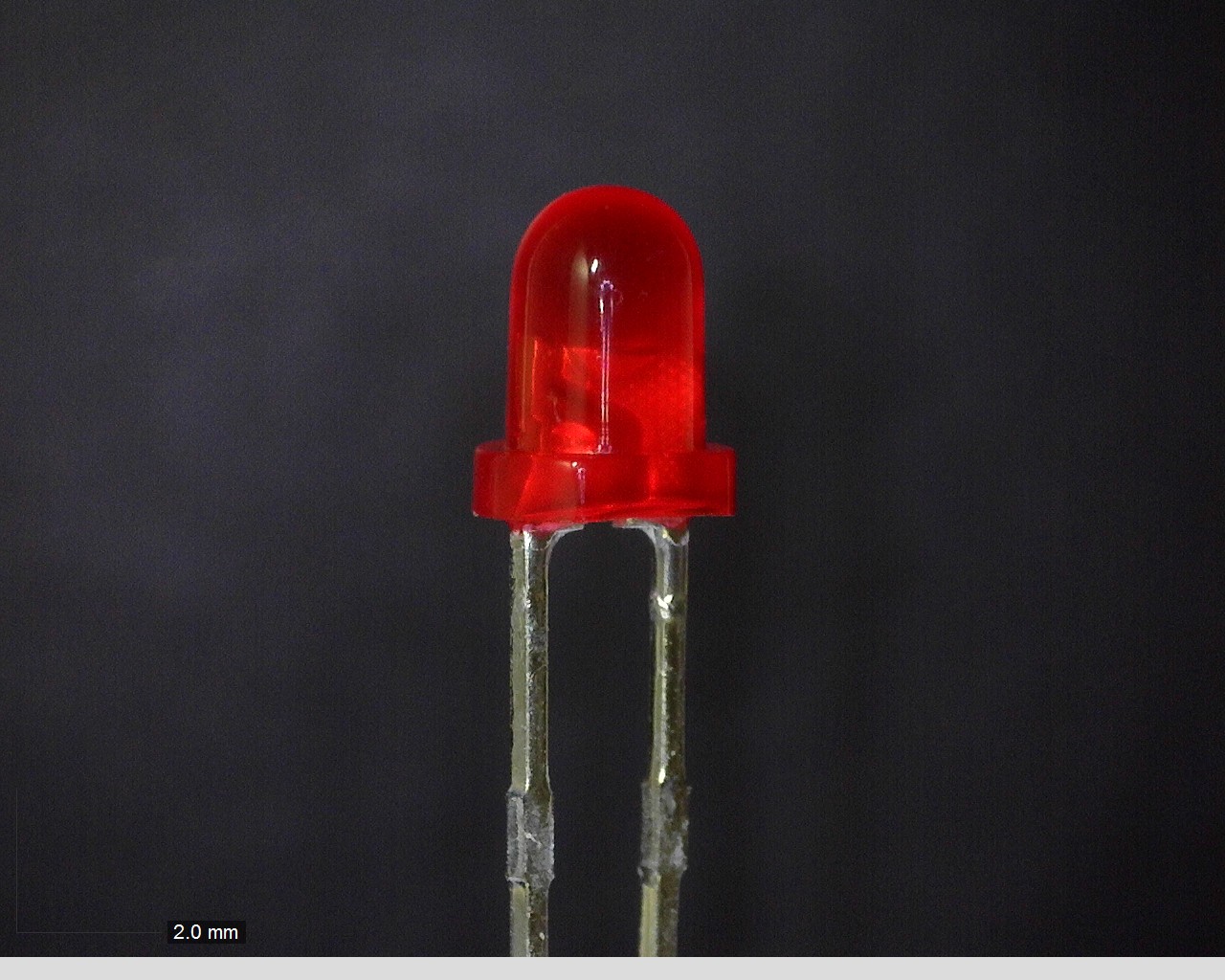

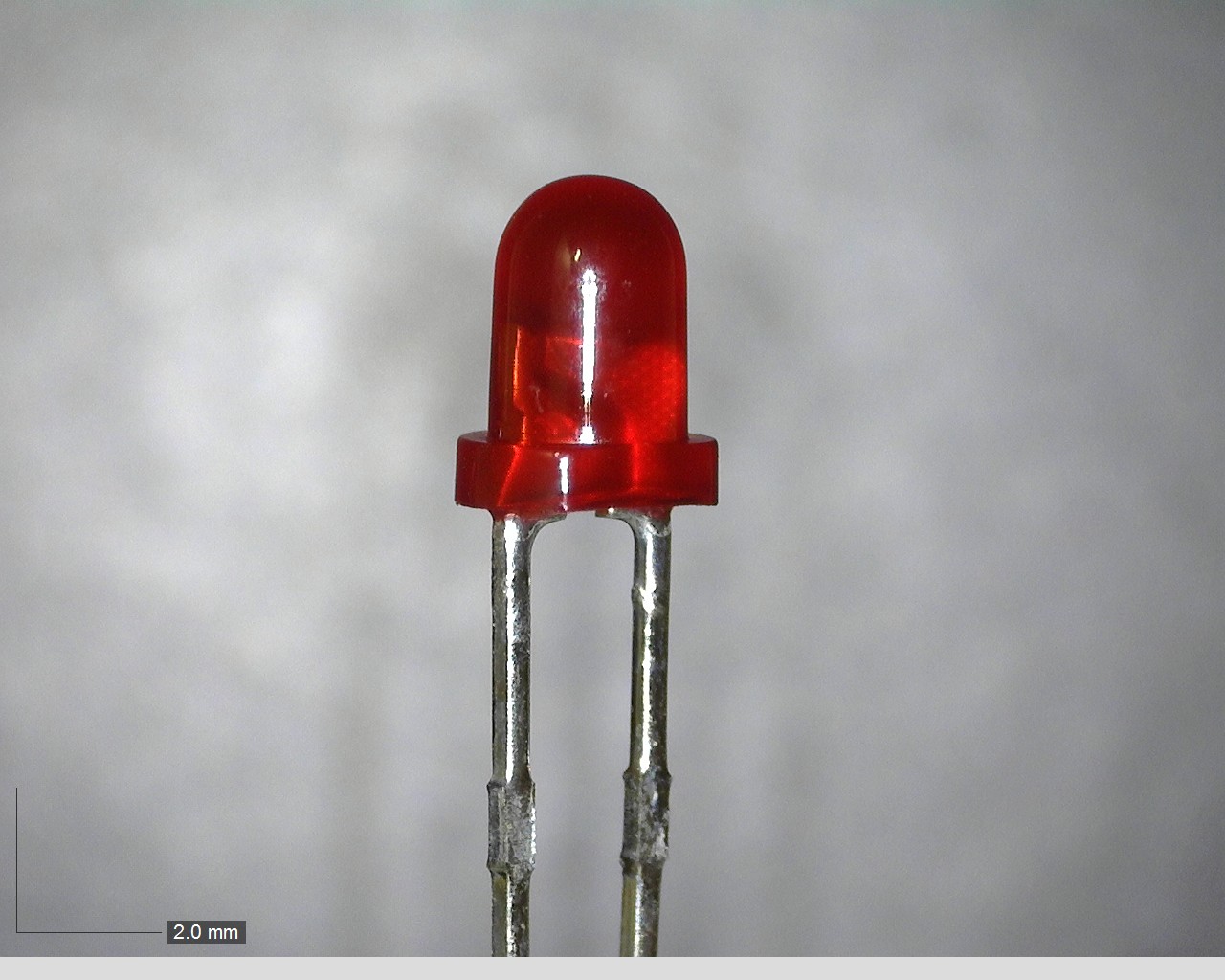

L1154ID の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | L1154ID |
|---|---|
| メーカー | KINGBRIGHT |
| Additional Feature | HIGH RELIABILITY |
| Color | HIGH EFFICIENCY RED |
| Color@wavelength | Orange |
| Configuration | SINGLE |
| Forward Current-Max | 0.03 A |
| Forward Voltage-Max | 2.3 V |
| Lens Type | DIFFUSED RED |
| Luminous Intensity-Nom | 25.0 mcd |
| Mounting Feature | RADIAL MOUNT |
| Number of Functions | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Optoelectronic Device Type | SINGLE COLOR LED |
| Overall Height | 5 mm |
| Packing Method | BULK |
| Peak Wavelength | 627 nm |
| Reverse Voltage-Max | 5 V |
| Shape | ROUND |
| Size | 3 mm |
| Sub Category | Visible LEDs |
| T-code | T-1 |
| Terminal Pitch | 2.54 mm |
| Viewing Angle | 60 deg |
| 会社名称 | Kingbright Elec. Co., Ltd. |
|---|---|
| 設立 | 1980 |
| 所在地 | 3F., No.317-1, Sec. 2, Zhongshan Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) |
| URL | http://www.kingbright.com/ |
