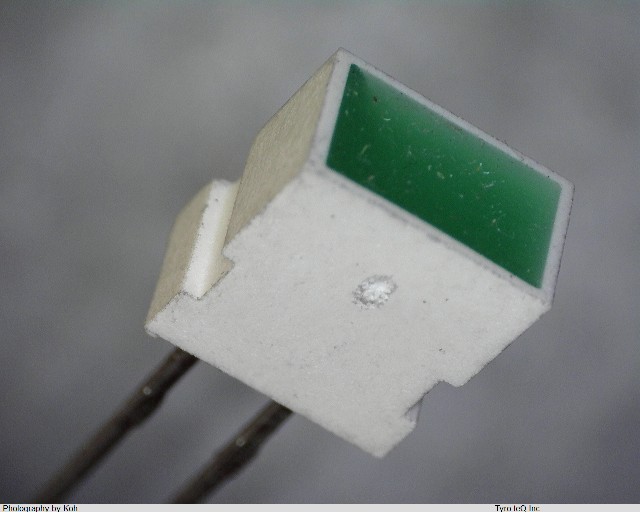

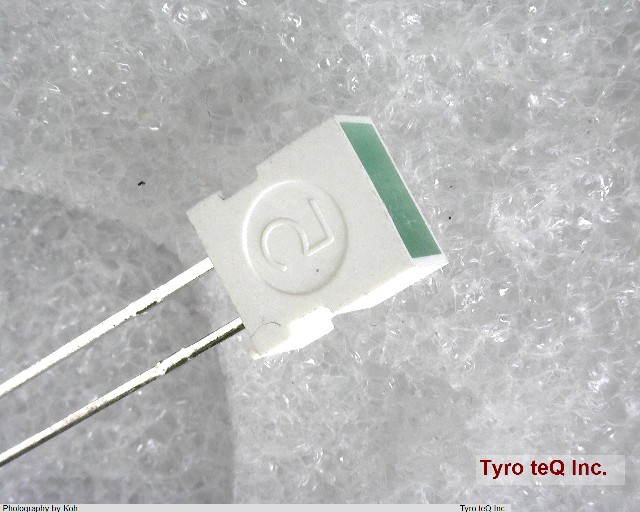

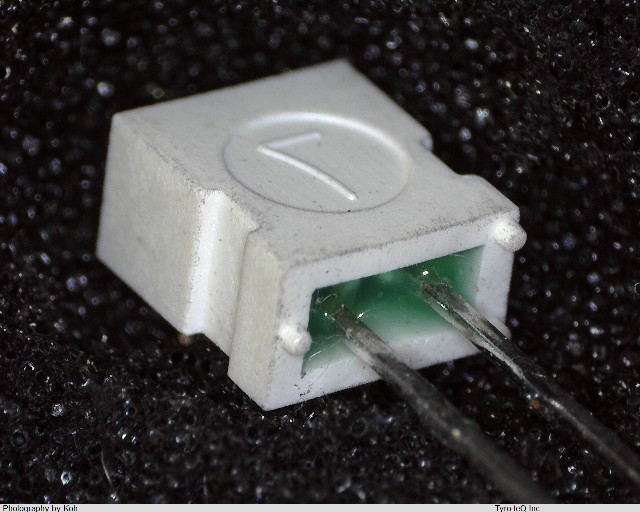

L-1043GD
1
-
- 個
２営業日以内に回答いたします
L-1043GD の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | L-1043GD |
|---|---|
| メーカー | KINGBRIGHT |
| Additional Feature | HIGH RELIABILITY |
| Color | GREEN |
| Color@wavelength | Green |
| Configuration | SINGLE |
| Forward Current-Max | 0.025 A |
| Forward Current-Max (A) | 0.025 |
| Forward Voltage-Max | 2.8 V |
| J-STD-609 Code | e3 |
| Lens Type | DIFFUSED |
| Luminous Intensity-Min | 120 cd |
| Luminous Intensity-Nom | 4.0 mcd |
| Luminous Intensity-Nom (mcd) | 4.0 |
| Mounting Feature | RADIAL MOUNT |
| Number of Functions | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Min (Cel) | -40 |
| Optoelectronic Device Type | SINGLE COLOR LED |
| Overall Height | 6.8 mm |
| Overall Height (mm) | 6.8 |
| Packing Method | BAG; BOX |
| Peak Wavelength | 565 nm |
| Peak Wavelength (nm) | 565 |
| Shape | RECTANGULAR |
| Size | 5.58 mm |
| Sub Category | Visible LEDs |
| Terminal Finish | TIN |
| Terminal Pitch | 2.54 mm |
| Terminal Pitch (mm) | 2.54 |
| Viewing Angle | 100 deg |
| Viewing Angle (deg) | 100 |
| 会社名称 | Kingbright Elec. Co., Ltd. |
|---|---|
| 設立 | 1980 |
| 所在地 | 3F., No.317-1, Sec. 2, Zhongshan Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) |
| URL | http://www.kingbright.com/ |
