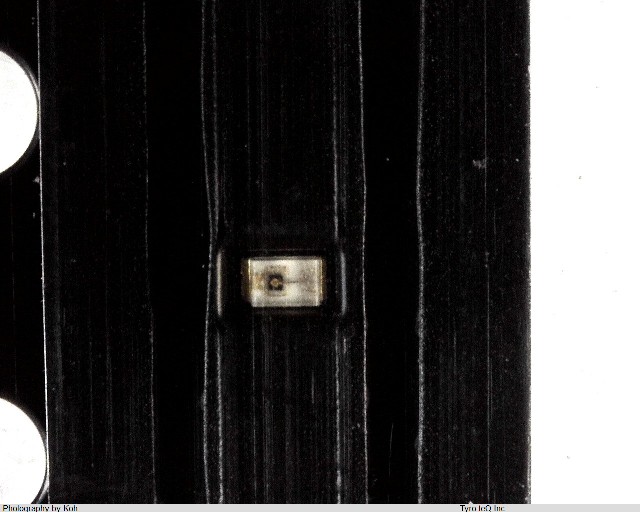

KPHHS-1005CGCK Kingbright

KPHHS-1005CGCK - KINGBRIGHT の商品詳細ページです。

1
KPHHS-1005CGCK
  • KPHHS-1005CGCK
  • KPHHS-1005CGCK
  • KPHHS-1005CGCK
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

KPHHS-1005CGCK の詳細情報

  • 仕様・詳細
  • メーカー情報
型番KPHHS-1005CGCK
メーカーKINGBRIGHT
Color GREEN
Color@wavelength Green-Yellow
Configuration SINGLE
Forward Current-Max 0.03 A
Forward Current-Max (A) 0.03
Forward Voltage-Max 2.5 V
J-STD-609 Code e4
JESD-609 Code e4
Lens Type WATER CLEAR
Luminous Intensity-Min 120 cd
Luminous Intensity-Nom 40.0 mcd
Luminous Intensity-Nom (mcd) 40.0
Mounting Feature SURFACE MOUNT
Number of Functions 1
Number of Terminals 2
Operating Temperature-Max 85 Cel
Operating Temperature-Max (Cel) 85
Operating Temperature-Min -40 Cel
Operating Temperature-Min (Cel) -40
Optoelectronic Device Type SINGLE COLOR LED
Overall Height 0.5 mm
Overall Height (mm) 0.5
Packing Method BULK
Peak Wavelength 574 nm
Peak Wavelength (nm) 574
Reverse Voltage-Max 5 V
Shape RECTANGULAR
Size 0.8 mm
Size (mm) 0.8
Sub Category Visible LEDs
Terminal Finish GOLD
Terminal Pitch 1.1 mm
Terminal Pitch (mm) 1.1
Viewing Angle 120 deg
Viewing Angle (deg) 120
会社名称Kingbright Elec. Co., Ltd.
設立1980
所在地3F., No.317-1, Sec. 2, Zhongshan Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.)
URLhttp://www.kingbright.com/
