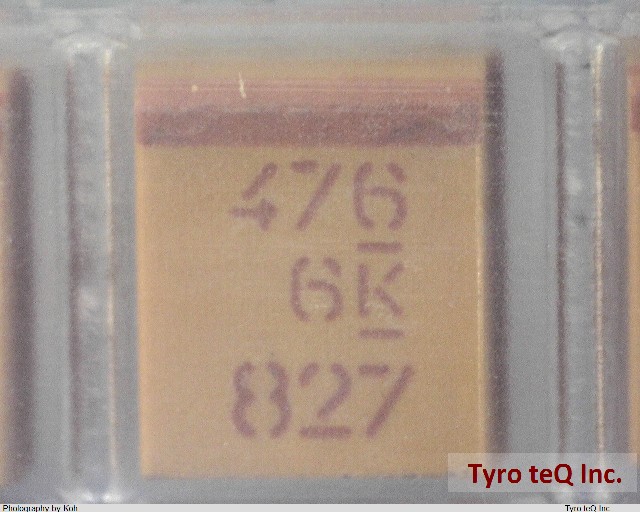

T491B476K006AT

Name: T491B476K006AT
Brand: KEMET
SKU: 300388685-0000-0000-0000

T491B476K006AT - KEMET の商品詳細ページです。

２営業日以内に回答いたします

T491B476K006AT の詳細情報

型番	T491B476K006AT
メーカー	KEMET
Additional Feature	ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance	47 uF
Capacitance (uF)	47
Capacitor Type	TANTALUM CAPACITOR
Dielectric Material	TANTALUM (DRY/SOLID)
ESR	2000 mohm
ESR (mohm)	2000
Height	1.9 mm
Height (mm)	1.9
J-STD-609 Code	e3
JESD-609 Code	e3
Leakage Current	0.003 mA
Leakage Current (mA)	.003
Length	3.5 mm
Length (mm)	3.5
Mounting Feature	SURFACE MOUNT
Negative Tolerance	10 %
Negative Tolerance (%)	10
Number of Terminals	2
Operating Temperature-Max	125 Cel
Operating Temperature-Max (Cel)	125
Operating Temperature-Min	-55 Cel
Operating Temperature-Min (Cel)	-55
Package Shape	RECTANGULAR PACKAGE
Package Style	SMT Meter
Packing Method	TR, 7 INCH
Polarity	POLARIZED
Positive Tolerance	10 %
Positive Tolerance (%)	10
Rated DC Voltage (URdc)	6 V
Rated DC Voltage (URdc) (V)	6.3
Reference Standard	AEC-Q200
Ripple Current	82.4 mA
Ripple Current (mA)	82
Screening Level / Reference Standard	AEC-Q200
Size Code	1411
Tan Delta	0.06
Terminal Finish	MATTE TIN OVER NICKEL
Terminal Pitch (mm)	0.8
Terminal Shape	J BEND
Width	2.8 mm
Width (mm)	2.8
