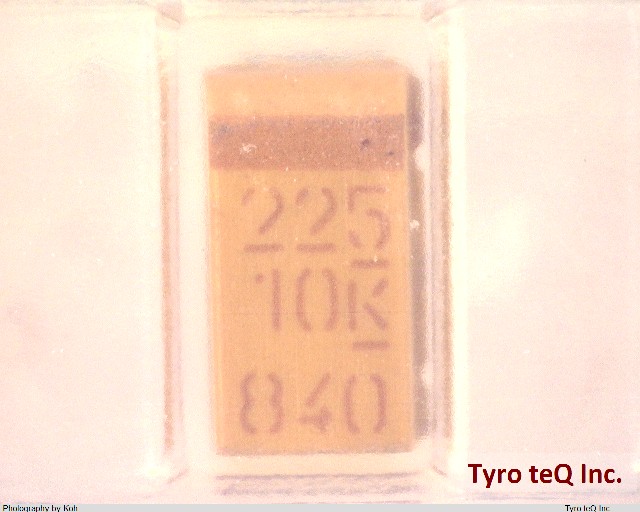

T491A225K010AT

Name: T491A225K010AT
Brand: KEMET
SKU: 300384674-0000-0000-0000

T491A225K010AT - KEMET の商品詳細ページです。

２営業日以内に回答いたします

T491A225K010AT の詳細情報

型番	T491A225K010AT
メーカー	KEMET
Additional Feature	ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance	2.2 uF
Capacitance (uF)	2.2
Capacitor Type	TANTALUM CAPACITOR
Custom Capabilities	13"" Reels Available on Special Request
Dielectric Material	TANTALUM (DRY/SOLID)
ESR	7000 mohm
ESR (mohm)	7000
Height	1.6 mm
Height (mm)	1.6
J-STD-609 Code	e3
JESD-609 Code	e3
Leakage Current	.0005 mA
Leakage Current (mA)	.0005
Length	3.2 mm
Length (mm)	3.2
Mounting Feature	SURFACE MOUNT
Negative Tolerance	10 %
Negative Tolerance (%)	10
Number of Terminals	2
Operating Temperature-Max	125 Cel
Operating Temperature-Max (Cel)	125
Operating Temperature-Min	-55 Cel
Operating Temperature-Min (Cel)	-55
Package Shape	RECTANGULAR PACKAGE
Package Style	SMT Meter
Packing Method	TR, 7 INCH
Polarity	POLARIZED
Positive Tolerance	10 %
Positive Tolerance (%)	10
Rated DC Voltage (URdc)	10 V
Rated DC Voltage (URdc) (V)	10
Reference Standard	AEC-Q200
Ripple Current	41.6 mA
Ripple Current (mA)	39
Screening Level / Reference Standard	AEC-Q200
Size Code	1206
Tan Delta	0.06
Temperature Coefficient	10ppm/Cel ppm/Cel
Terminal Finish	MATTE TIN OVER NICKEL
Terminal Pitch (mm)	0.8
Terminal Shape	J BEND
Width	1.6 mm
Width (mm)	1.6
