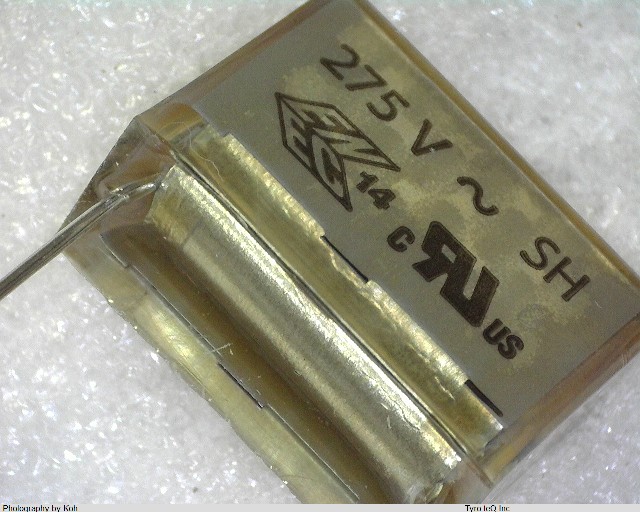

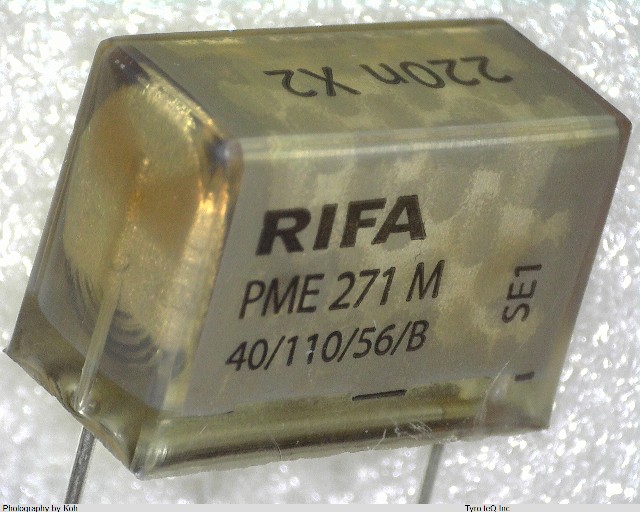

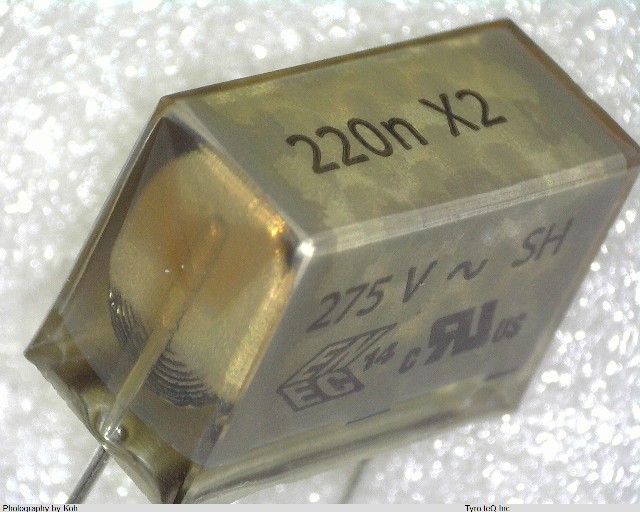

PME271M622KR30

Name: PME271M622KR30
Brand: KEMET
SKU: 260234459-0000-0000-0000

PME271M622KR30 - KEMET の商品詳細ページです。

２営業日以内に回答いたします

PME271M622KR30 の詳細情報

型番	PME271M622KR30
メーカー	KEMET
Additional Feature	SAFETY CLASS: X2
Capacitance	0.22 uF
Capacitance (uF)	0.22
Capacitor Type	FILM CAPACITOR
Dielectric Material	PAPER
Height	16.5 mm
Height (mm)	16.5
J-STD-609 Code	e3
JESD-609 Code	e3
Length	24 mm
Length (mm)	24
Mounting Feature	THROUGH HOLE MOUNT
Multilayer	No
Negative Tolerance	10 %
Negative Tolerance (%)	10
Number of Terminals	2
Operating Temperature-Max	110 Cel
Operating Temperature-Max (Cel)	110
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Shape	RECTANGULAR PACKAGE
Package Style	Radial Meter
Packing Method	BULK
Positive Tolerance	10 %
Positive Tolerance (%)	10
Rated AC Voltage (URac)	275 V
Rated AC Voltage (URac) (V)	275
Rated DC Voltage (URdc) (V)	630
Screening Level / Reference Standard	CUL; ENEC; UL
Series	PME271M
Size Code	9444
Terminal Finish	TIN OVER NICKEL
Terminal Pitch	20.3 mm
Terminal Pitch (mm)	20.3
Terminal Shape	WIRE
Width	11.3 mm
Width (mm)	11.3
