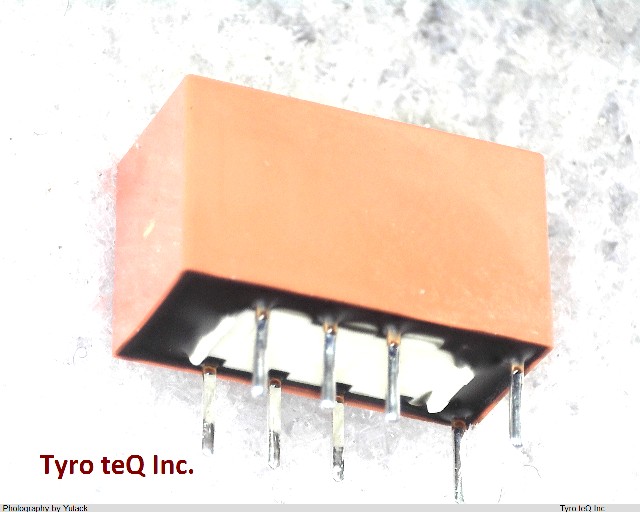

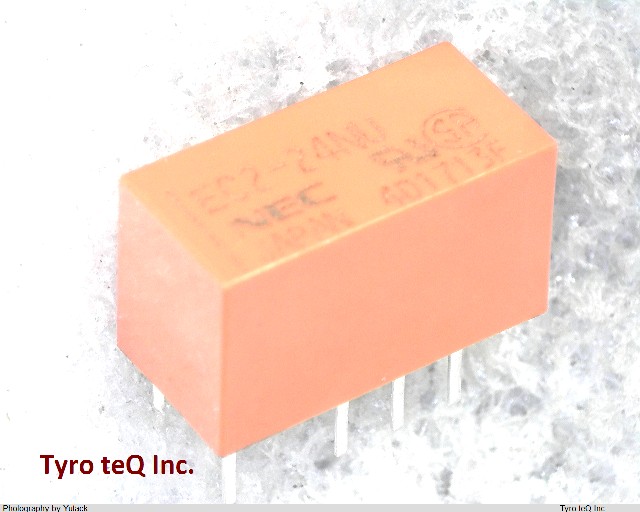

EC2-24NU
  • EC2-24NU
  • EC2-24NU
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

EC2-24NU の詳細情報

  • 仕様・詳細
  • メーカー情報
型番EC2-24NU
メーカーKEMET
Body Breadth 7.5 inch
Body Breadth (mm) 7.5
Body Height 9.4 mm
Body Height (mm) 9.4
Body Length or Diameter 15 mm
Body Length or Diameter (mm) 15
Coil Current(DC)-Max 0.008 A
Coil Current(DC)-Max (A) 0.008
Coil Operate Voltage(DC) 18 V
Coil Operate Voltage(DC) (V) 18
Coil Power 200 mW
Coil Power (mW) 200
Coil Release Voltage(DC) 2.4 V
Coil Release Voltage(DC) (V) 2.4
Coil Resistance 2880 ohm
Coil Resistance (ohm) 2880
Coil Voltage(DC)-Max 24 V
Coil Voltage(DC)-Max (V) 24
Coil Voltage-Nom (V) 24
Coil/Input Supply Type DC
Contact AC Max Power Rating R Load 125VA@250VAC
Contact AC Max Rating R Load .5A@125VAC
Contact Current(AC)-Max 2 A
Contact Current(AC)-Max (A) 0.5
Contact Current(DC)-Max 2 A
Contact Current(DC)-Max (A) 2
Contact DC Max Power Rating R Load 60W@220VDC
Contact DC Max Rating R Load 2A@30VDC
Contact Resistance (mohm) 50
Contact Voltage(AC)-Max 250 V
Contact Voltage(AC)-Max (V) 125
Contact Voltage(DC)-Max 220 V
Contact Voltage(DC)-Max (V) 30
Contact/Output Supply Type AC/DC
Dielectric Strength Between Coil and Contacts (Vrms) 1500
Dielectric Strength Between Open Contacts (Vrms) 1000
Electrical Life 1000000 Cycle(s)
Electrical Life (Cycle(s)) 1000000
Mounting Feature THROUGH HOLE-STRAIGHT MOUNT
Operate Time 2 ms
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Packing Method TUBE
Physical Dimension 15mm x 7.5mm x 9.4mm
Reference Standard CSA; TUV; UL
Relay Action MOMENTARY
Relay Function DPDT
Relay Type POWER/SIGNAL RELAY
Release Time 1 ms
Termination Type SOLDER
