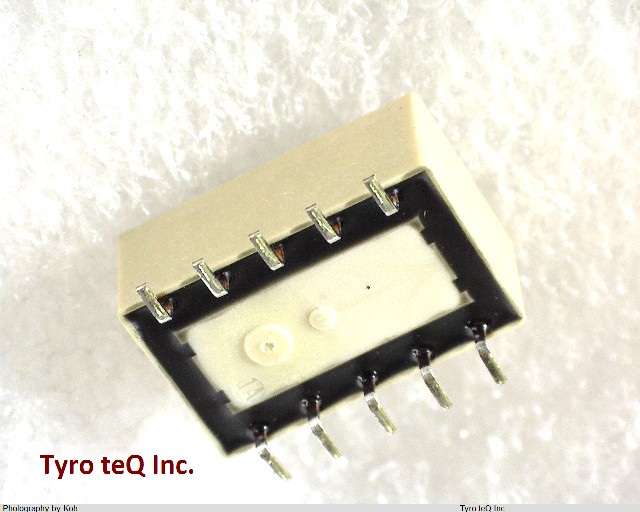

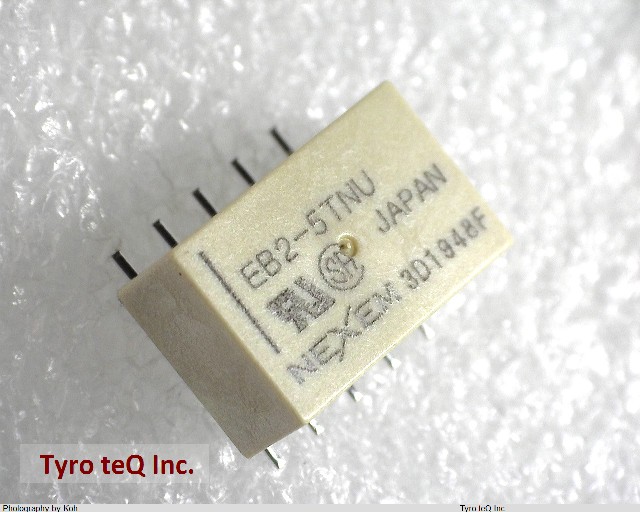

EB2-5TNU
  • EB2-5TNU
  • EB2-5TNU
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

EB2-5TNU の詳細情報

  • 仕様・詳細
  • メーカー情報
型番EB2-5TNU
メーカーKEMET
Body Breadth 9.3 inch
Body Height 6.15 mm
Body Length or Diameter 14.3 mm
Coil Current(DC)-Max 0.028 A
Coil Operate Voltage(DC) 3.75 V
Coil Power 140 mW
Coil Release Voltage(DC) 3.75 V
Coil Resistance 178 ohm
Coil Voltage(DC)-Max 5 V
Coil Voltage-Nom 5 V
Coil/Input Supply Type DC
Contact AC Max Power Rating R Load 62.5VA@250VAC
Contact AC Max Rating R Load .5A@125VAC
Contact Current(AC)-Max 0.5 A
Contact Current(DC)-Max 1 A
Contact DC Max Power Rating R Load 30W@220VDC
Contact DC Max Rating R Load 1A@30VDC
Contact Resistance 75 mohm
Contact Voltage(AC)-Max 125 V
Contact Voltage(DC)-Max 30 V
Contact/Output Supply Type AC/DC
Dielectric Strength Between Coil and Contacts 1000 Vrms
Dielectric Strength Between Open Contacts 1000 Vrms
Electrical Life 1000000 Cycle(s)
End Contact Material Silver Alloy
End Contact Plating GOLD ALLOY
Input Switching Control Type Random
Insulation Resistance 1000000000 ohm
Manufacturer Series EB2
Mounting Feature SURFACE MOUNT-STRAIGHT
Number of Terminals 10
Operate Time 2 ms
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
PCB Hole Count 10
Packing Method TAPE AND REEL
Physical Dimension 14.3mm x 9.3mm x 6.15mm
Reference Standard CSA; UL
Relay Action LATCHED
Relay Form 2 FORM C
Relay Function DPDT
Relay Type POWER/SIGNAL RELAY
Release Time 1 ms
Termination Type SOLDER
Weight 1.5 g
