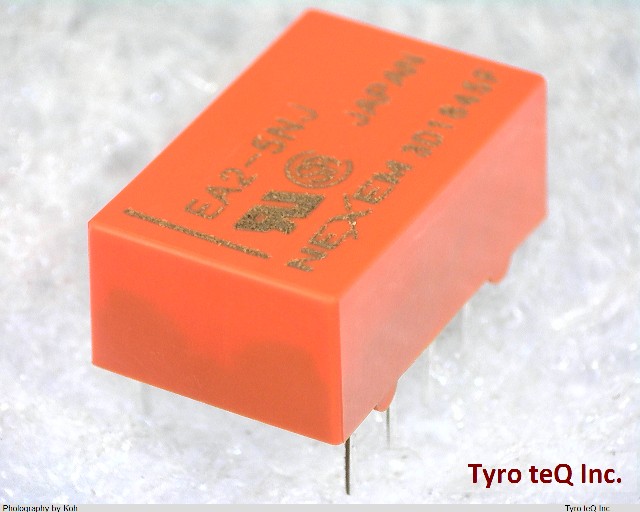

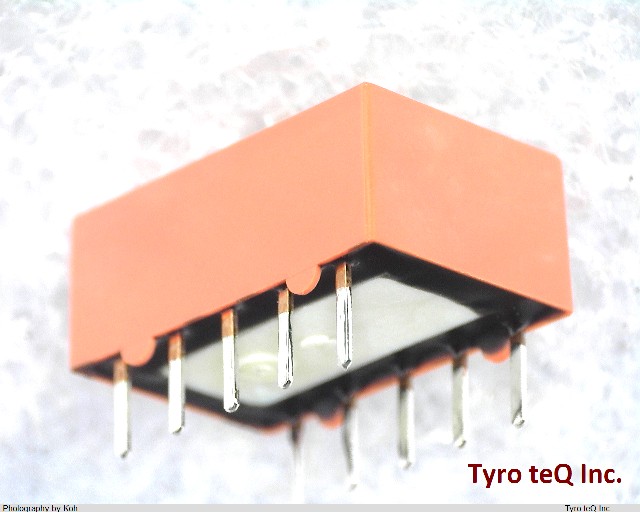

EA2-5NJ

Name: EA2-5NJ
Brand: KEMET
SKU: 150188544-0000-0000-0000

EA2-5NJ - KEMET の商品詳細ページです。

２営業日以内に回答いたします

EA2-5NJ の詳細情報

型番	EA2-5NJ
メーカー	KEMET
Body Breadth	9.2 inch
Body Breadth (mm)	9.2
Body Height	5.4 mm
Body Height (mm)	5.4
Body Length or Diameter	14.2 mm
Body Length or Diameter (mm)	14.2
Coil Current(DC)-Max	0.028 A
Coil Operate Voltage(DC)	3.75 V
Coil Operate Voltage(DC) (V)	3.75
Coil Power	140 mW
Coil Power (mW)	140
Coil Release Voltage(DC)	0.5 V
Coil Release Voltage(DC) (V)	0.5
Coil Resistance	178 ohm
Coil Resistance (ohm)	178
Coil Voltage(DC)-Max	5 V
Coil Voltage-Nom (V)	5
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	62.5VA@250VAC
Contact AC Max Rating R Load	1A@250VAC
Contact Current(AC)-Max	1 A
Contact Current(AC)-Max (A)	2
Contact Current(DC)-Max	1 A
Contact Current(DC)-Max (A)	2
Contact DC Max Power Rating R Load	30W@220VDC
Contact DC Max Rating R Load	1A@220VDC
Contact Resistance (mohm)	50
Contact Voltage(AC)-Max	250 V
Contact Voltage(AC)-Max (V)	250
Contact Voltage(DC)-Max	220 V
Contact Voltage(DC)-Max (V)	220
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts (Vrms)	1000
Dielectric Strength Between Open Contacts (Vrms)	1000
Electrical Life	1000000 Cycle(s)
Electrical Life (Cycle(s))	1000000
End Contact Material	Silver Alloy
End Contact Plating	GOLD ALLOY
Input Switching Control Type	Random
Insulation Resistance (ohm)	1000000000
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	10
Operate Time	2 ms
Operate Time (ms)	2
Packing Method	TUBE
Physical Dimension	14.2mm x 9.2mm x 5.4mm
Relay Action	LATCHED
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Termination Type	SOLDER
