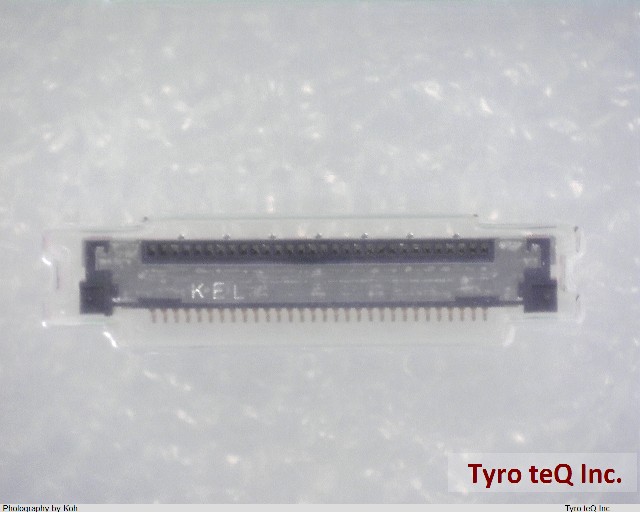

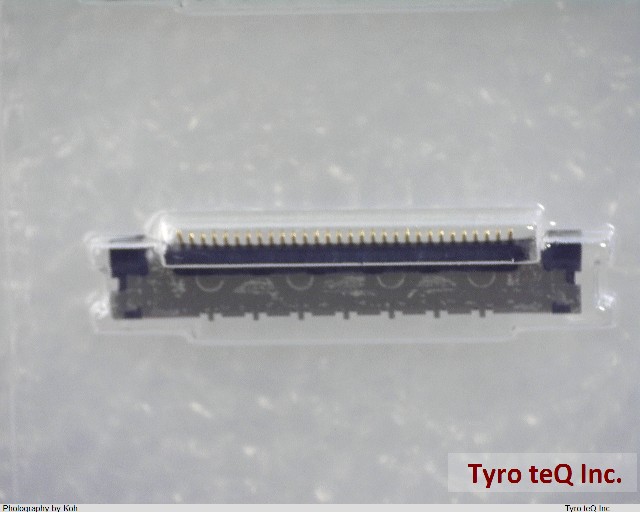

USL00-30L-B

Name: USL00-30L-B
Brand: KEL
SKU: 310107334-0000-0000-0000

USL00-30L-B - KEL の商品詳細ページです。

２営業日以内に回答いたします

USL00-30L-B の詳細情報

型番	USL00-30L-B
メーカー	KEL
Board Mounting Option	SOLDER HOLDING POSTS
Body Breadth	0.039 inch
Body Depth	0.122 inch
Body Length	0.654 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	AU ON NI
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	100 mohm
Dielectric Withstanding Voltage	200VAC V
Insulation Resistance	100000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer Series	USL
Mating Contact Pitch	0.016 inch
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PCB Contact Pattern	RECTANGULAR
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	0.25 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	.3048 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	30
