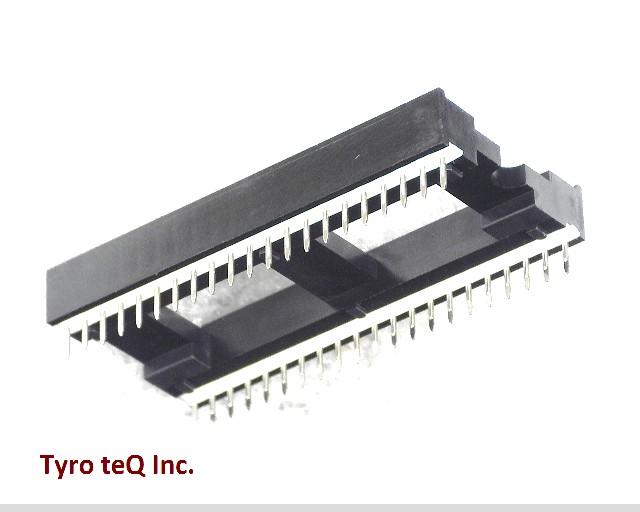

SIC01-042-361T-F

Name: SIC01-042-361T-F
Brand: KEL
SKU: 290469603-0000-0000-0000

SIC01-042-361T-F - KEL の商品詳細ページです。

２営業日以内に回答いたします

SIC01-042-361T-F の詳細情報

型番	SIC01-042-361T-F
メーカー	KEL
Additional Feature	ROHS COMPLIANT
Body Breadth	0.698 inch
Body Depth	0.2 inch
Body Length	1.481 inch
Contact Finish - Mating	SN ON NI
Contact Finish - Termination	TIN OVER NICKEL
Contact Material	CU ALLOY
Contact Style	LEAF
Current Rating	1 A
Device Socket Type	IC SOCKET
Device Type Used On	DIP42
Dielectric Withstanding Voltage	800VAC V
Housing Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Insulation Resistance	5000000000 ohm
Mating Contact Pitch	0.07 inch
Mounting Style	STRAIGHT
Number of Contacts	42
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-20 Cel
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	0.6 mm
Terminal Pitch	1.778 mm
Termination Type	SOLDER
