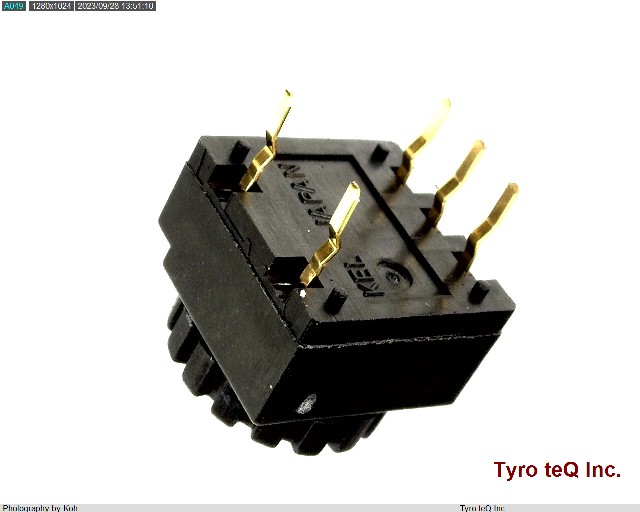

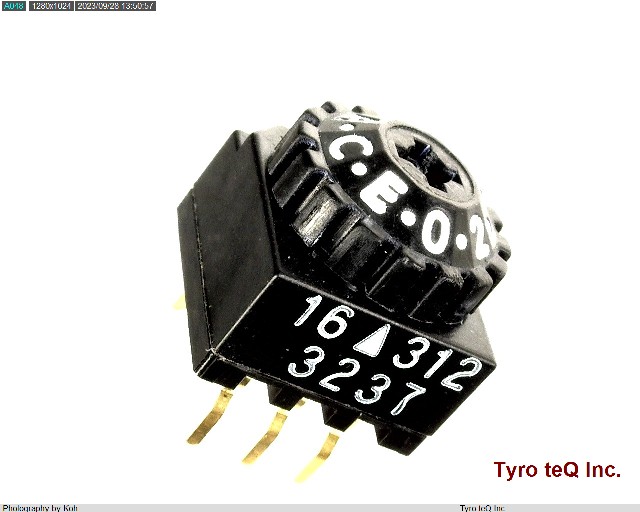

KDS16-312-F

Name: KDS16-312-F
Brand: KEL
SKU: 210099491-0000-0000-0000

KDS16-312-F - KEL の商品詳細ページです。

２営業日以内に回答いたします

KDS16-312-F の詳細情報

型番	KDS16-312-F
メーカー	KEL
Actuator Color	BLACK
Actuator Material	POLYACETAL
Actuator Type	INDICATOR TYPE
Body Breadth	10 inch
Body Height	10.1 mm
Body Length or Diameter	10 mm
Center Contact Material	COPPER ALLOY
Center Contact Plating	GOLD OVER NICKEL
Contact Current(DC)-Max	0.125 A
Contact DC Max Rating R Load	0.125A@30VDC
Contact Function	BINARY CODED
Contact Resistance	0.1 mohm
Contact Voltage(DC)-Max	30 V
Dielectric Withstand Volts	250VAC V
Electrical Life	20000 Cycle(s)
End Contact Material	COPPER ALLOY
End Contact Plating	GOLD OVER NICKEL
Insulation Resistance	1000000000 ohm
Insulator Material	GLASS FILLED POLYAMIDE
JESD-609 Code	e4
Mounting Feature	THROUGH HOLE-STRAIGHT
Number of Positions	16
Number of Switch Sections	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
PCB Hole Count	5
Packing Method	TUBE
Switch Action	LATCHED
Switch Function	SP16T
Switch Type	ROTARY CODED SWITCH
Terminal Finish	Gold (Au) - with Nickel (Ni) barrier
Terminal Length	0.138 inch
Termination Type	SOLDER
Washability	SOLVENT
