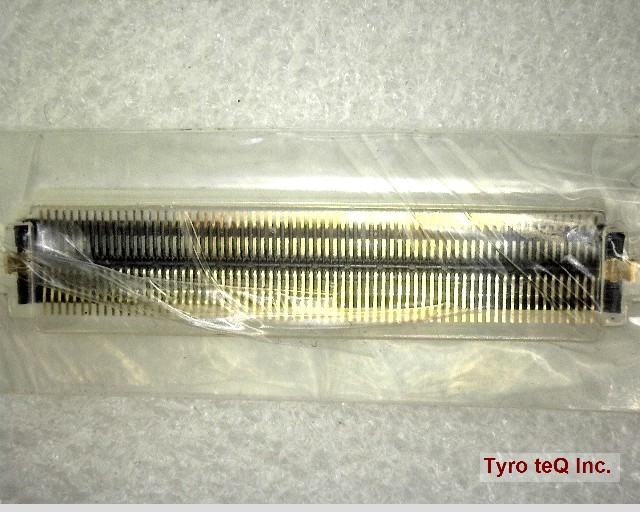

DY11-140S-1

Name: DY11-140S-1
Brand: KEL
SKU: 140201970-0000-0000-0000

DY11-140S-1 - KEL の商品詳細ページです。

２営業日以内に回答いたします

DY11-140S-1 の詳細情報

型番	DY11-140S-1
メーカー	KEL
Board Mounting Option	PEG
Body Breadth	0.209 inch
Body Depth	0.147 inch
Body Length	1.169 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	AU ON NI
Contact Finish - Termination	GOLD OVER NICKEL
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	80 mohm
DIN Conformance	NO
Dielectric Withstanding Voltage	200VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	100000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	DY
Mating Contact Pitch	0.02 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	5.7912 mm
Rated Current (Signal)	0.4 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	.5 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	100
UL Flammability Code	94V-0
