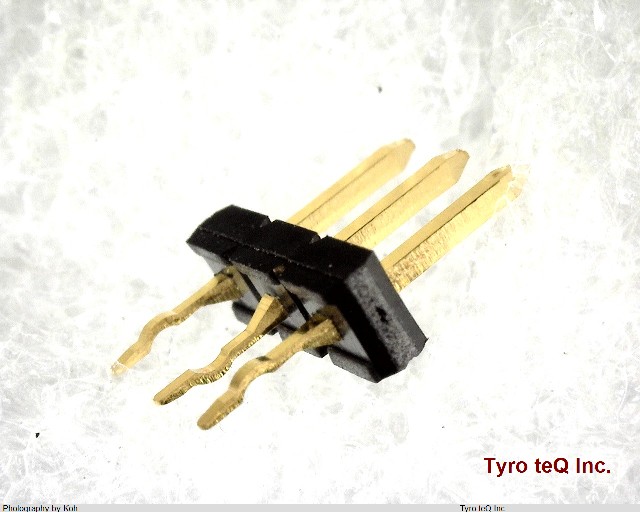

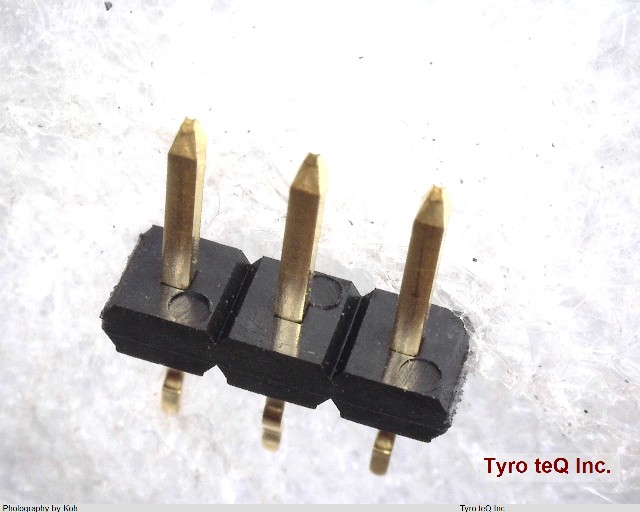

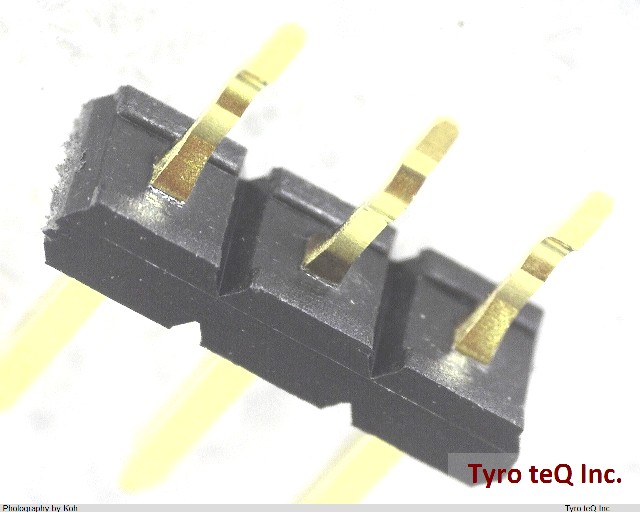

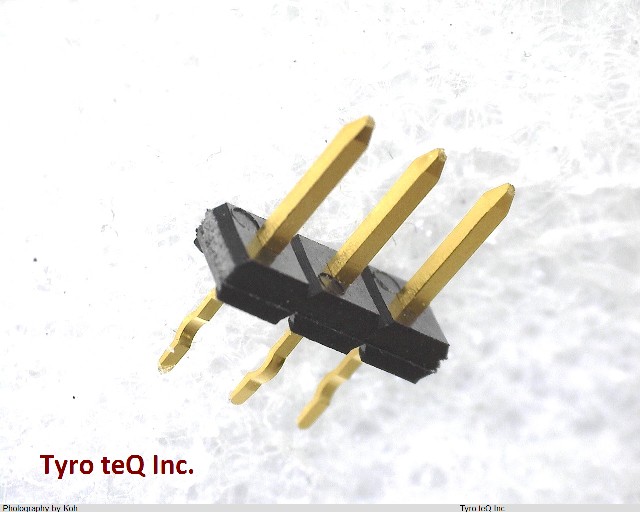

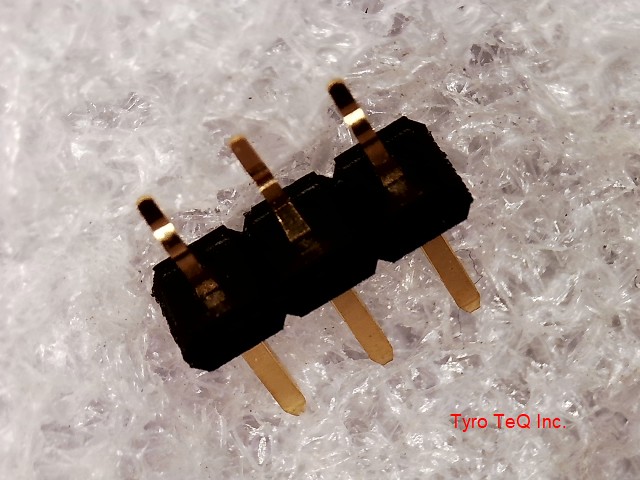

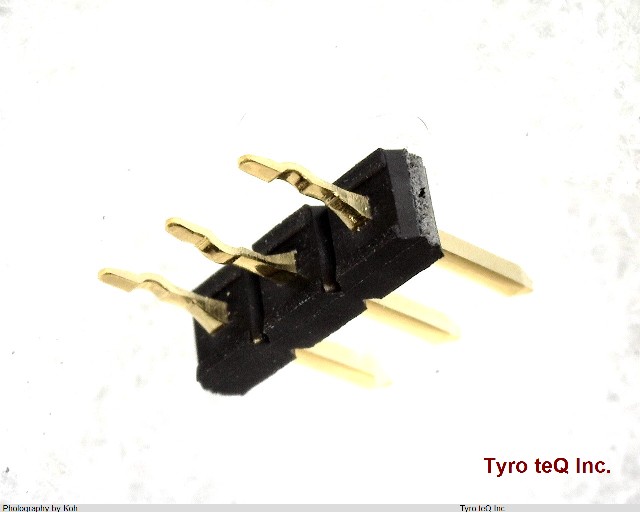

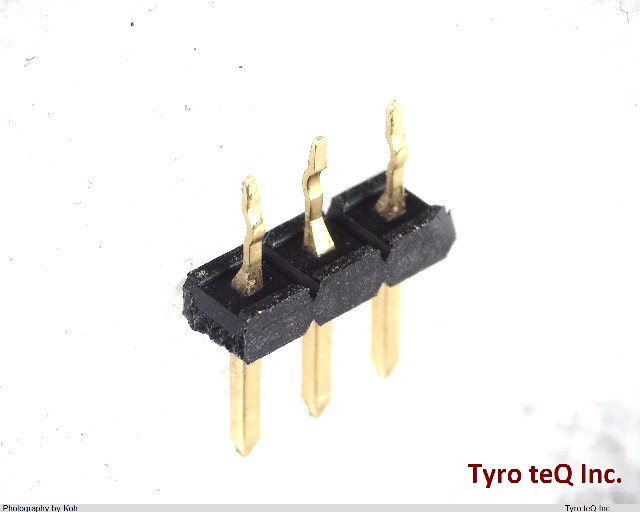

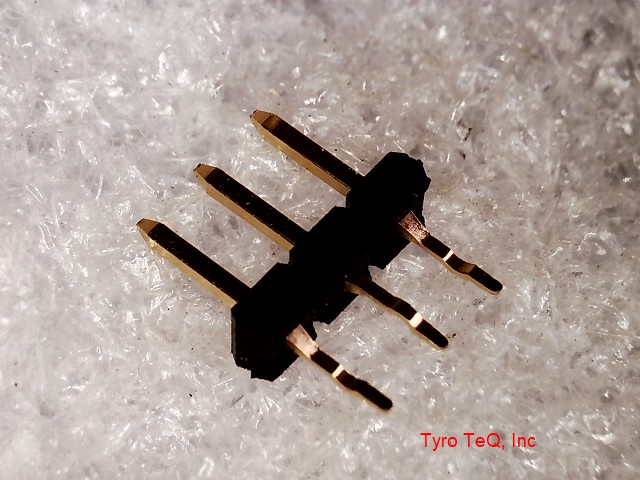

DSP03-003-432G データシート

Name: DSP03-003-432G
Brand: KEL
SKU: 140074992-0000-0000-0000

DSP03-003-432G - KEL の商品詳細ページです。

２営業日以内に回答いたします

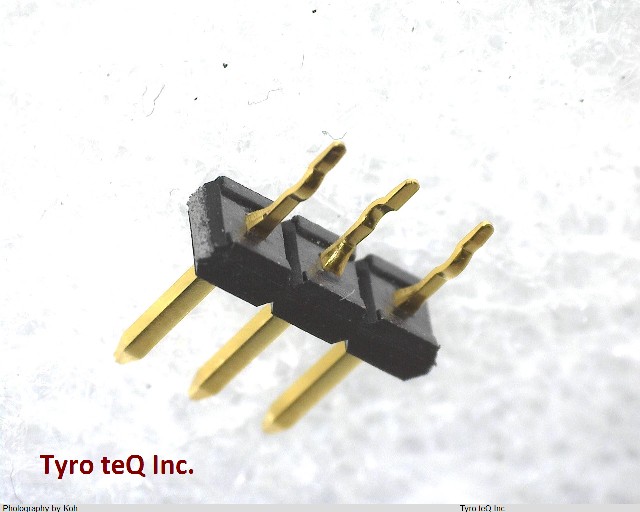

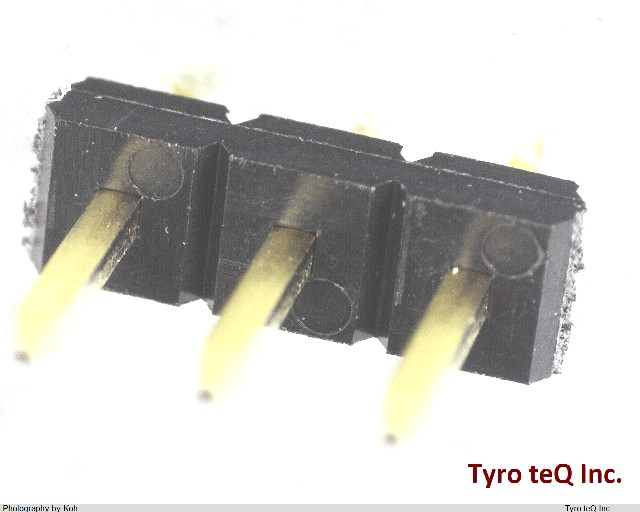

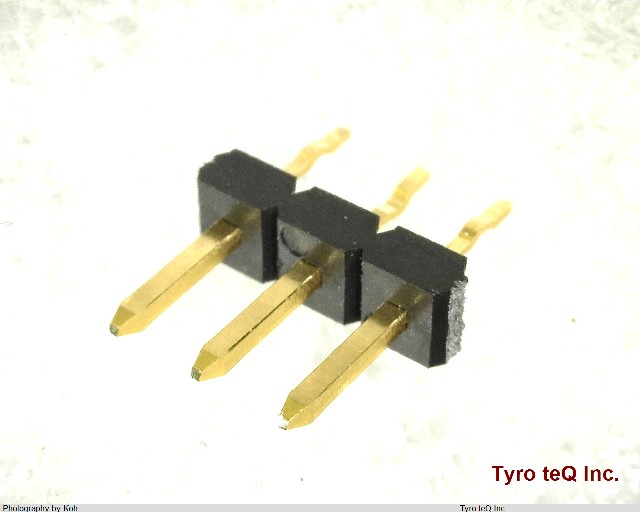

DSP03-003-432G の詳細情報

型番	DSP03-003-432G
メーカー	KEL
データシート
Additional Feature	LOW PROFILE
Body Breadth	0.1 inch
Body Depth	0.059 inch
Body Length	0.3 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	AU ON NI
Contact Finish - Termination	Gold (Au) - with Nickel (Ni) barrier
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	9.7856 N
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYAMIDE
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	DSP03
Mating Contact Pitch	0.1 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.138 inch
Terminal Pitch	2.54 mm
Termination Type	PRESS FIT
Total Number of Contacts	3
UL Flammability Code	94V-0
Withdrawl Force-Min	.8896 N
