DSP01-002-430G-0 データシート

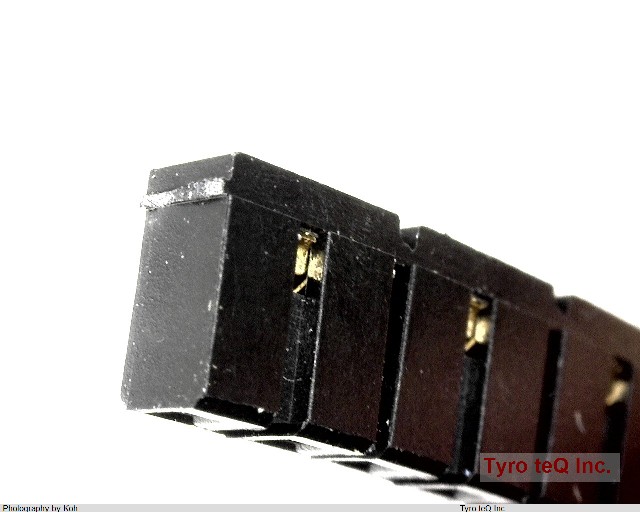

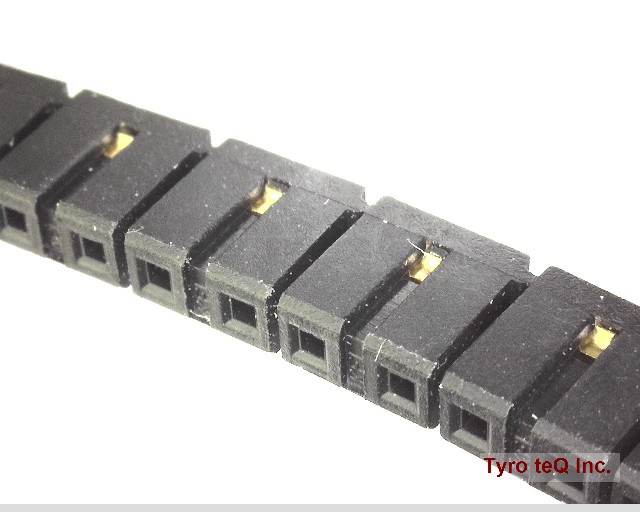

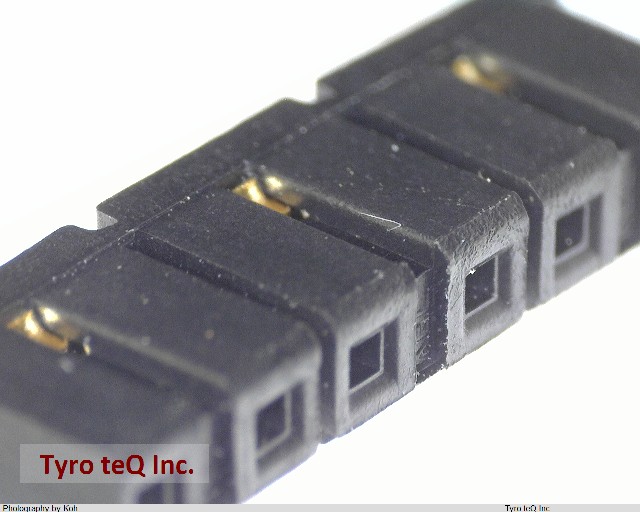

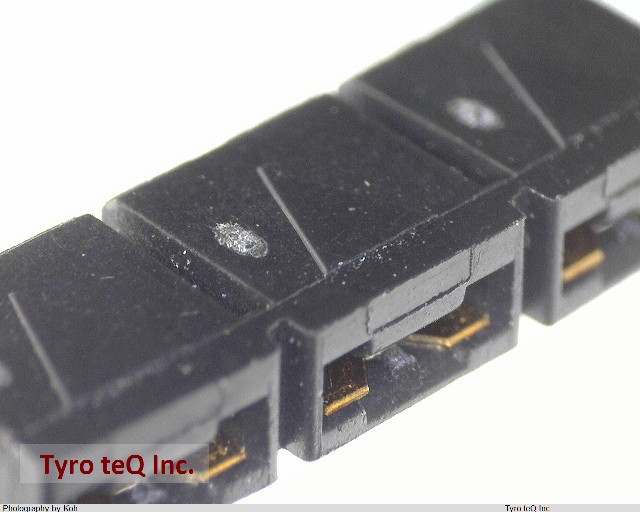

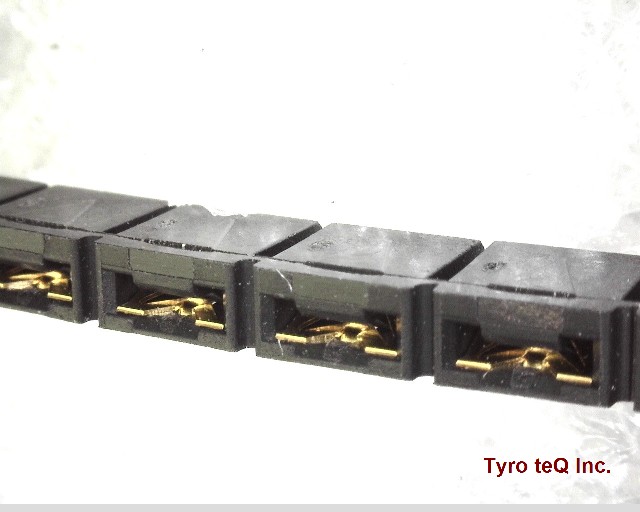

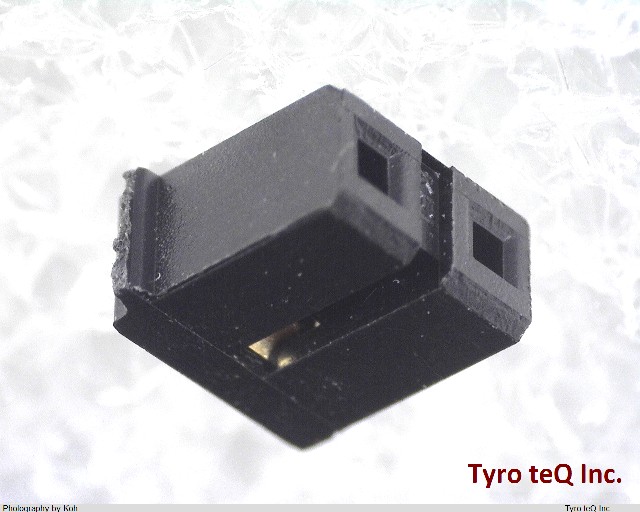

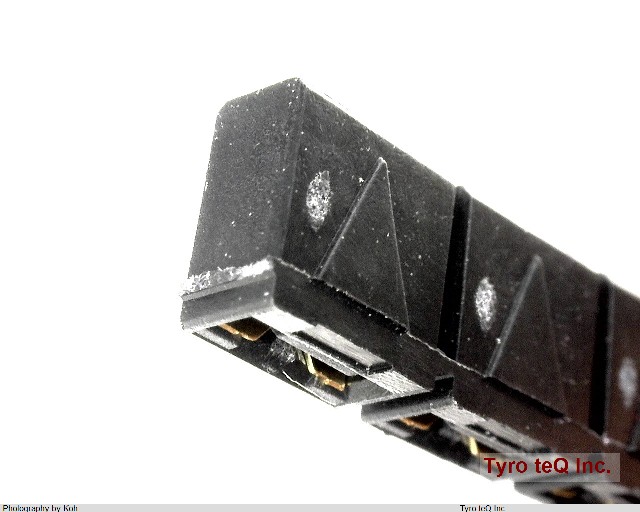

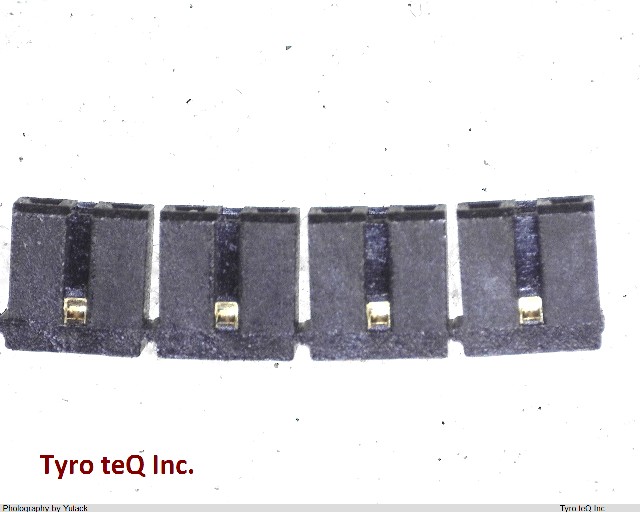

Name: DSP01-002-430G-0
Brand: KEL
SKU: 140013136-0000-0000-0000

DSP01-002-430G-0 - KEL の商品詳細ページです。

２営業日以内に回答いたします

DSP01-002-430G-0 の詳細情報

型番	DSP01-002-430G-0
メーカー	KEL
データシート
Additional Feature	LOW PROFILE
Body Breadth	0.094 inch
Body Depth	0.236 inch
Body Length	0.185 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Termination	Gold (Au) - with Nickel (Ni) barrier
Contact Gender	MALE
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	1000VAC V
Filter Feature	NO
Insertion Force-Max	9.8 N
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e4
Mating Contact Pitch	0.1 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	1 A
Reference Standard	UL
Terminal Length	0.138 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	2
UL Flammability Code	94V-0
Withdrawl Force-Min	0.88 N
