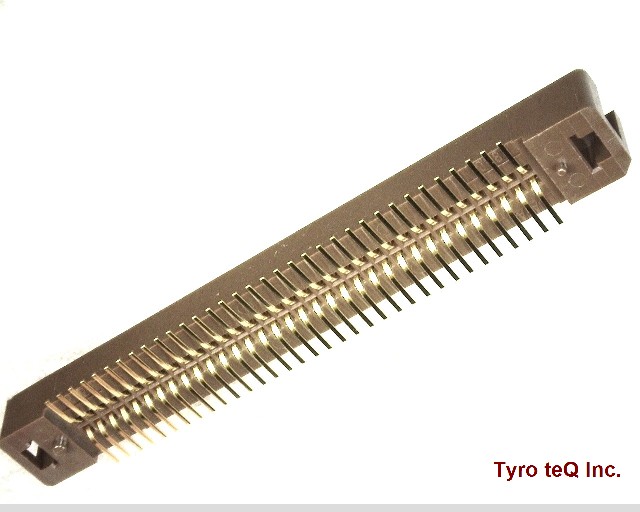

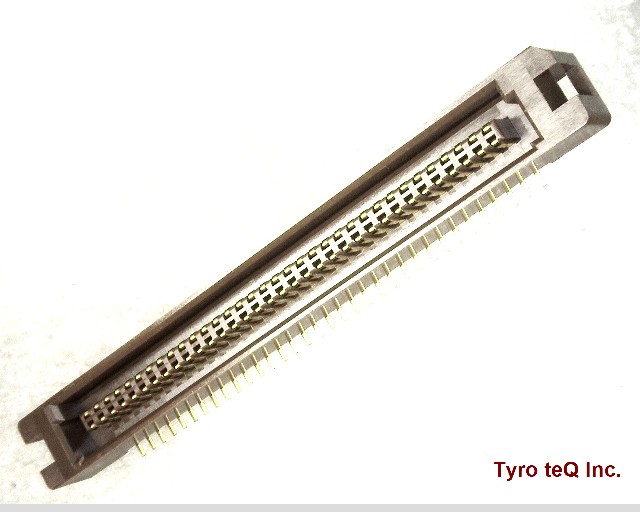

8930E-068-178MS-F

Name: 8930E-068-178MS-F
Brand: KEL
SKU: 90122112-0000-0000-0000

8930E-068-178MS-F - KEL の商品詳細ページです。

２営業日以内に回答いたします

8930E-068-178MS-F の詳細情報

型番	8930E-068-178MS-F
メーカー	KEL
Board Mounting Option	PEG
Body Breadth	0.26 inch
Body Depth	0.201 inch
Body Length	2.201 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	GOLD (2) OVER NICKEL
Contact Finish - Termination	Gold (Au) - with Nickel (Ni) barrier
Contact Gender	MALE
Contact Pattern	RECTANGULAR
Contact Resistance	40 mohm
Contact Style	CENTRONIC
DIN Conformance	NO
Dielectric Withstanding Voltage	650VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BROWN
Insulator Material	GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 Code	e4
MIL Conformance	NO
Mating Contact Pitch	0.05 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	6.3 mm
Polarization Key	POLARIZATION NOTCH
Rated Current (Signal)	0.5 A
Reference Standard	UL
Terminal Pitch	1.27 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	68
UL Flammability Code	94V-0
