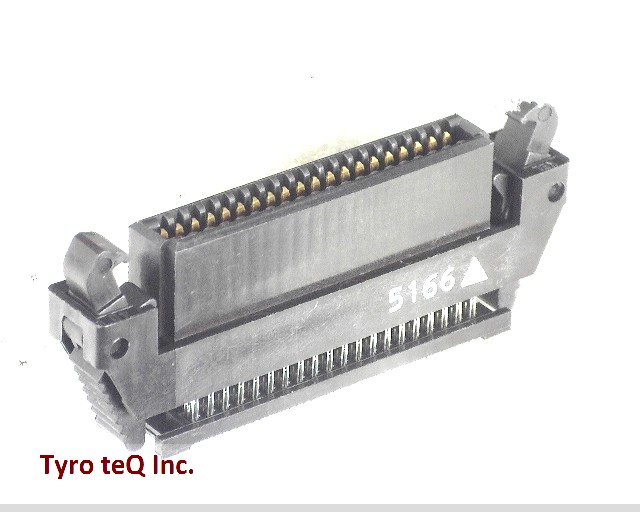

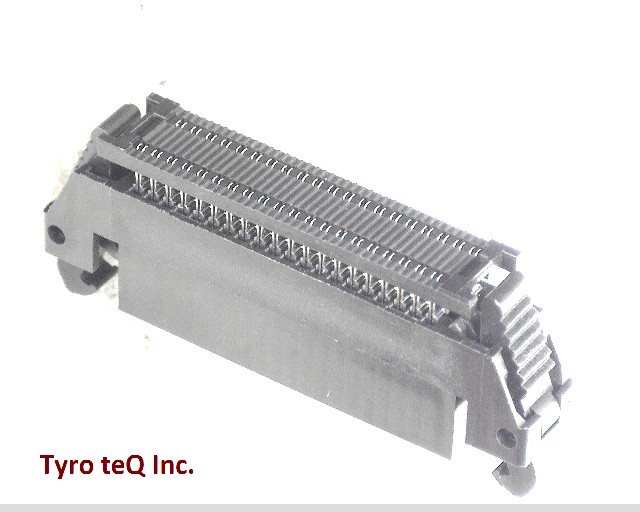

8825E-040-175

Name: 8825E-040-175
Brand: KEL
SKU: 90000015-0000-0000-0000

8825E-040-175 - KEL の商品詳細ページです。

２営業日以内に回答いたします

8825E-040-175 の詳細情報

型番	8825E-040-175
メーカー	KEL
Additional Feature	NONE
Body Breadth	0.26 inch
Body Depth	0.76 inch
Body Length	1.596 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	AU
Contact Gender	FEMALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Dielectric Withstanding Voltage	300VAC V
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYAMIDE
Mating Contact Pitch	0.05 inch
Mounting Option 1	LATCH & EJECT
Mounting Type	CABLE
Number of Rows Loaded	2
Plating Thickness	FLASH inch
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	IDC
Total Number of Contacts	40
Wire Size-Max	30 AWG
Wire Size-Min	30 AWG
