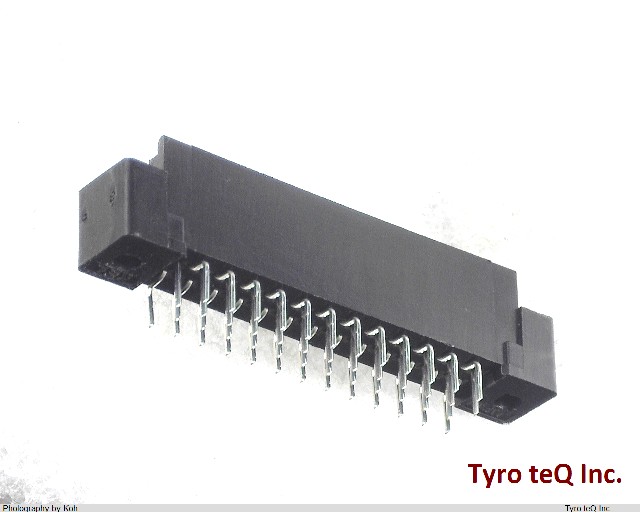

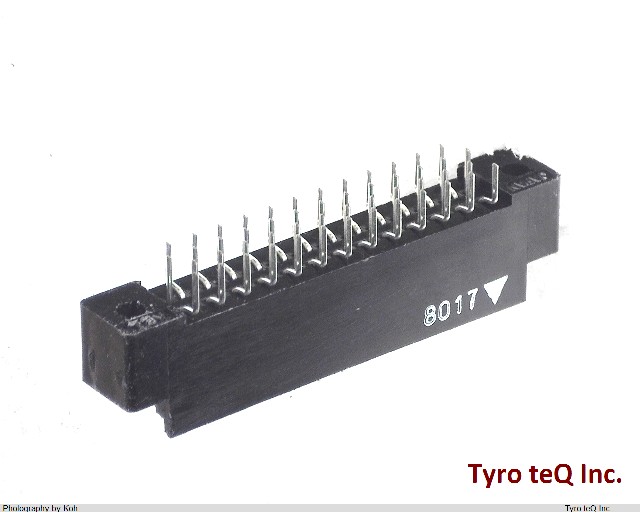

8810-050-170S

Name: 8810-050-170S
Brand: KEL
SKU: 90122945-0000-0000-0000

8810-050-170S - KEL の商品詳細ページです。

２営業日以内に回答いたします

8810-050-170S の詳細情報

型番	8810-050-170S
メーカー	KEL
Additional Feature	FLANGE WITHOUT HOOKS
Body Breadth	0.276 inch
Body Depth	0.421 inch
Body Length	1.751 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	AU
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	25 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	650VAC V
Insertion Force-Max	.9452 N
Insulation Resistance	1000000000 ohm
Insulator Material	GLASS FILLED POLYAMIDE
Manufacturer Series	8810
Mating Contact Pitch	0.05 inch
Mounting Option 1	HOLE .087-.098
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	4
Number of Rows Loaded	2
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	1.905 mm
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.118 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	50
Withdrawl Force-Min	.1946 N
