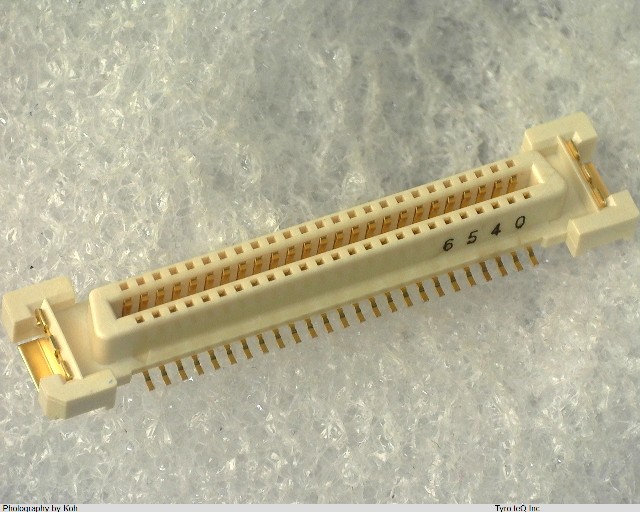

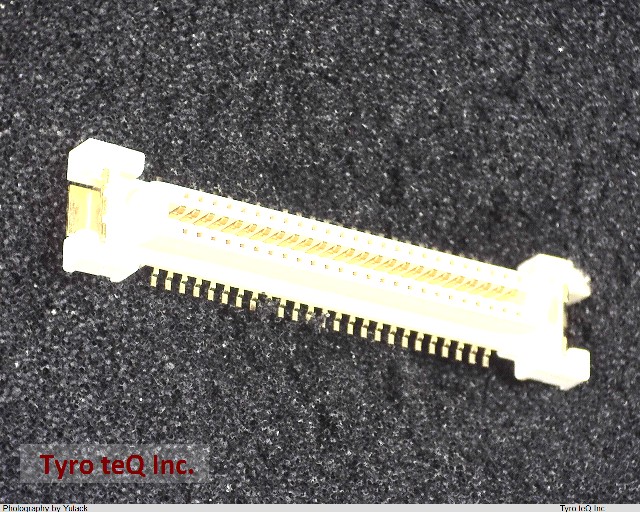

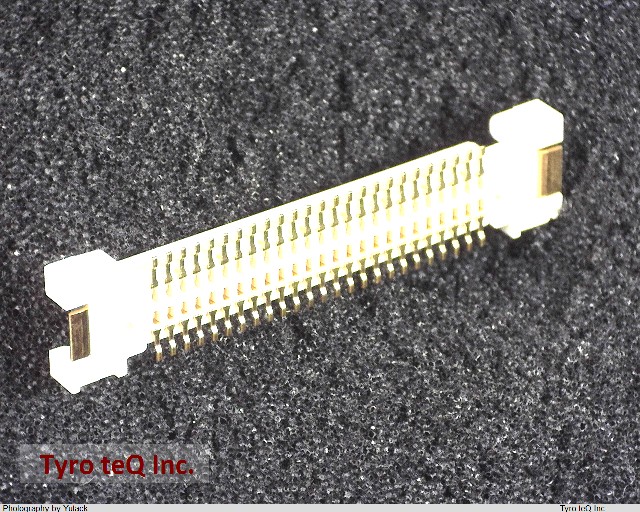

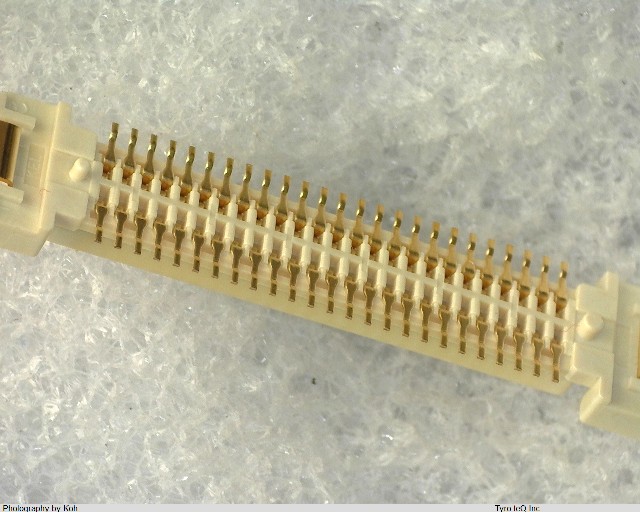

87BFN-050S-F

Name: 87BFN-050S-F
Brand: KEL
SKU: 90090541-0000-0000-0000

87BFN-050S-F - KEL の商品詳細ページです。

２営業日以内に回答いたします

87BFN-050S-F の詳細情報

型番	87BFN-050S-F
メーカー	KEL
Additional Feature	ROHS COMPLIANT
Body Breadth	0.307 inch
Body Depth	0.157 inch
Body Length	1.437 inch
Body/Shell Style	RECEPTACLE
Contact Finish - Mating	AU ON NI
Contact Finish - Termination	GOLD OVER NICKEL
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	50 mohm
Dielectric Withstanding Voltage	315VAC V
Insulation Resistance	1000000000 ohm
Insulator Color	WHITE
Insulator Material	GLASS FILLED LIQUID CRYSTAL POLYMER
Mating Contact Pitch	0.039 inch
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	6.5024 mm
Plating Thickness	2u inch
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	D Type Connectors
Terminal Pitch	.9906 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	50
