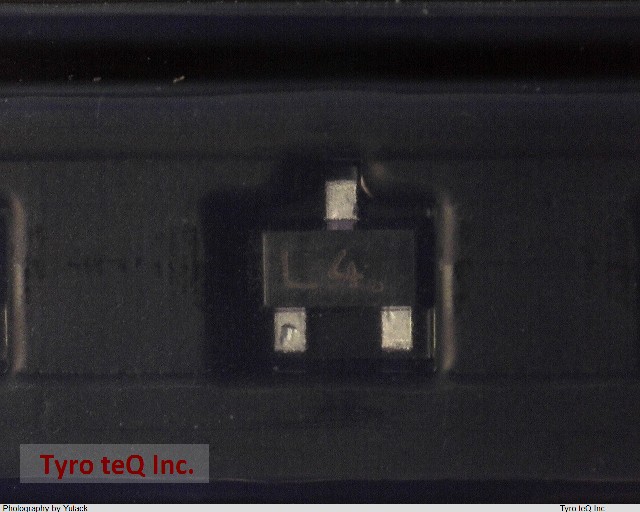

KTC4075

Name: KTC4075
Brand: KEC
SKU: 210007179-0000-0000-0000

KTC4075 - KEC の商品詳細ページです。

２営業日以内に回答いたします

KTC4075 の詳細情報

型番	KTC4075
メーカー	KEC
Additional Feature	LOW NOISE
Collector Current-Max (IC)	0.15 A
Collector-emitter Voltage-Max	50 V
Configuration	SINGLE
DC Current Gain-Min (hFE)	70
JESD-30 Code	R-PDSO-F3
JESD-609 Code	e3
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	3
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	NPN
Power Dissipation-Max (Abs)	0.1 W
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	YES
Terminal Finish	Matte Tin (Sn)
Terminal Form	FLAT
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Transistor Application	SWITCHING
Transistor Element Material	SILICON
Transition Frequency-Nom (fT)	80 MHz
