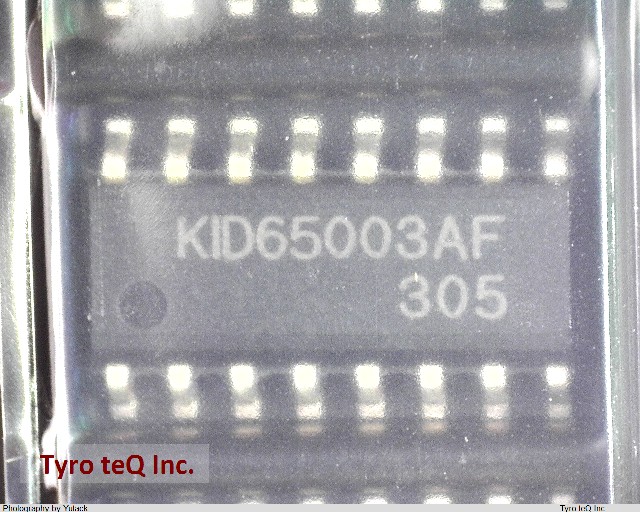

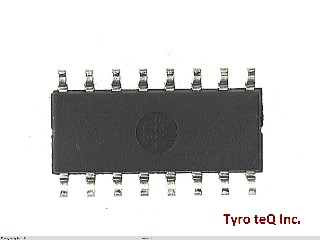

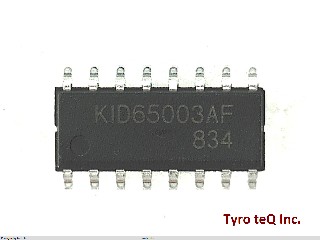

KID65003AF-EL/P

Name: KID65003AF-EL/P
Brand: KEC
SKU: 210099143-0000-0000-0000

KID65003AF-EL/P - KEC の商品詳細ページです。

２営業日以内に回答いたします

KID65003AF-EL/P の詳細情報

型番	KID65003AF-EL/P
メーカー	KEC
Additional Feature	BULIT-BIAS RESISTOR, LOGIC LEVEL COMPATIBLE
Collector Current-Max (IC)	0.5 A
Collector-emitter Voltage-Max	50 V
Configuration	COMPLEX
DC Current Gain-Min (hFE)	1000
JESD-30 Code	R-PDSO-G16
Number of Elements	7
Number of Terminals	16
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Polarity/Channel Type	NPN
Surface Mount	YES
Terminal Finish	PURE TIN
Terminal Form	GULL WING
Terminal Position	DUAL
Transistor Application	SWITCHING
Transistor Element Material	SILICON
