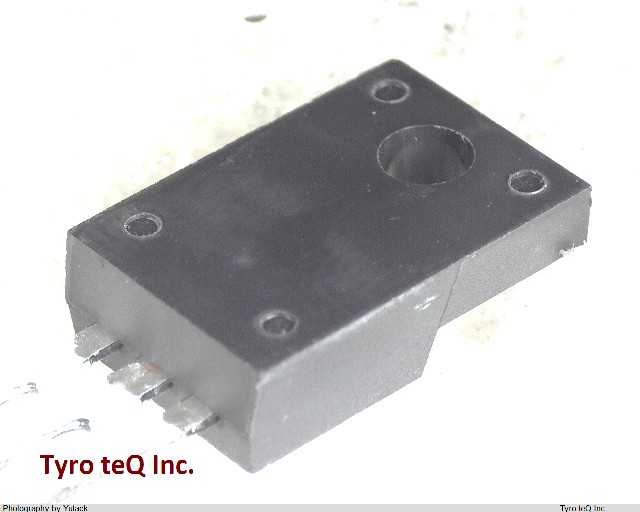

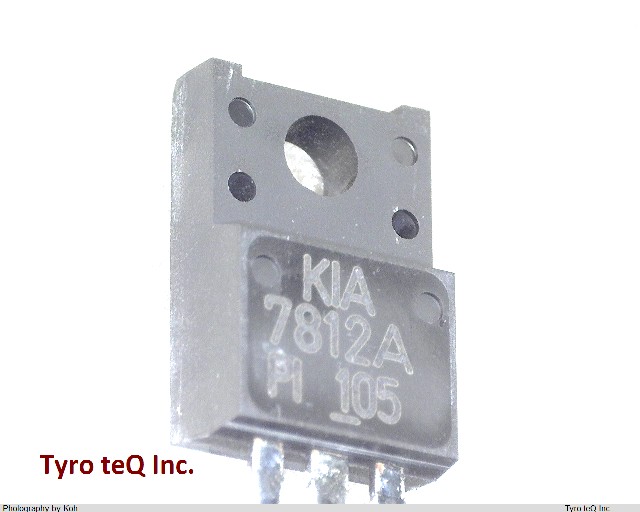

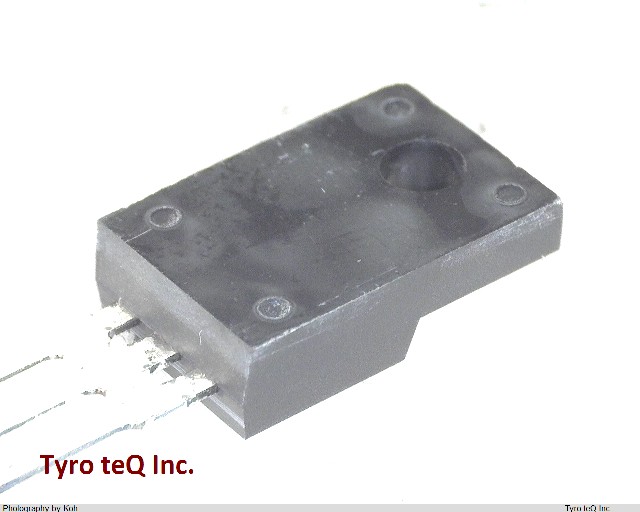

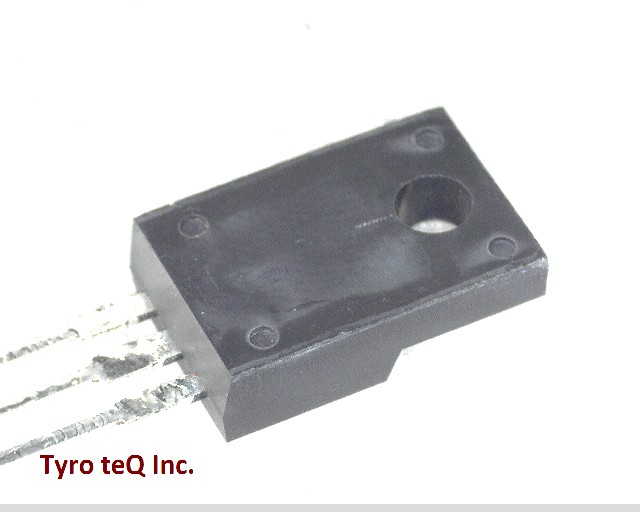

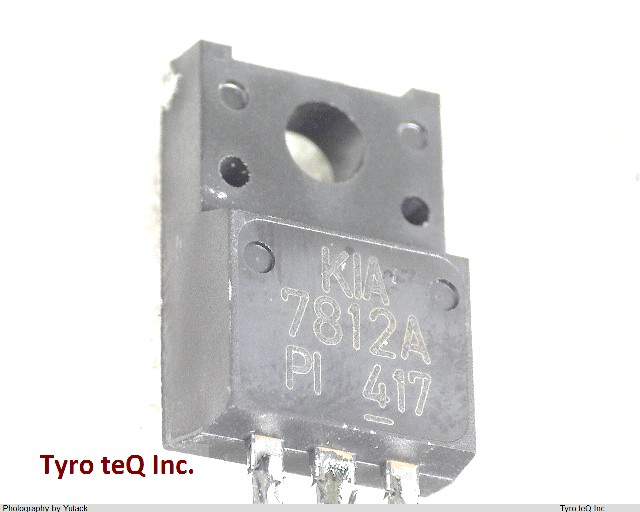

KIA7812API

Name: KIA7812API
Brand: KEC
SKU: 210000398-0000-0000-0000

KIA7812API - KEC の商品詳細ページです。

２営業日以内に回答いたします

KIA7812API の詳細情報

型番	KIA7812API
メーカー	KEC
Input Voltage-Max	30 V
Input Voltage-Min	14.5 V
JESD-30 Code	R-XSFM-T3
Number of Functions	1
Number of Terminals	3
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	1 A
Output Voltage1-Max	12.6 V
Output Voltage1-Min	11.4 V
Output Voltage1-Nom	12 V
Package Body Material	UNSPECIFIED
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Surface Mount	NO
Technology	BIPOLAR
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Tolerance-Max	5 %
