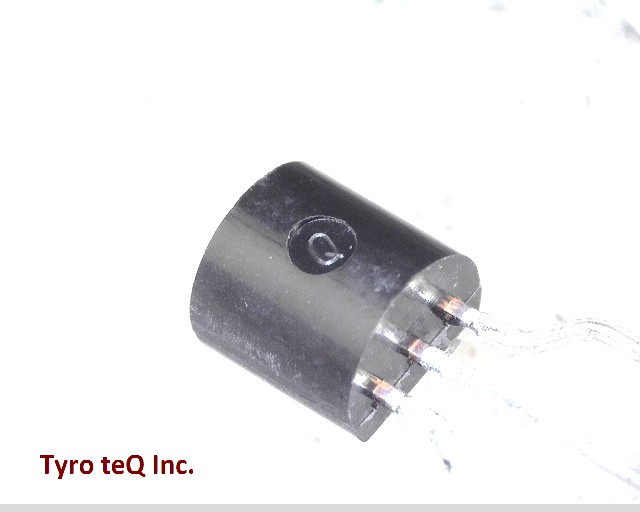

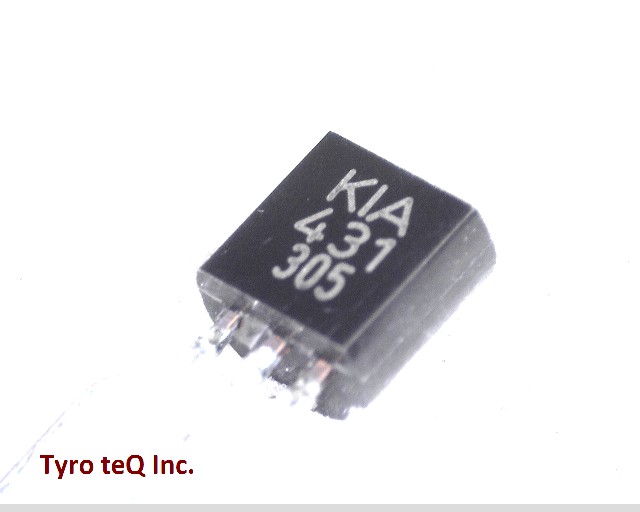

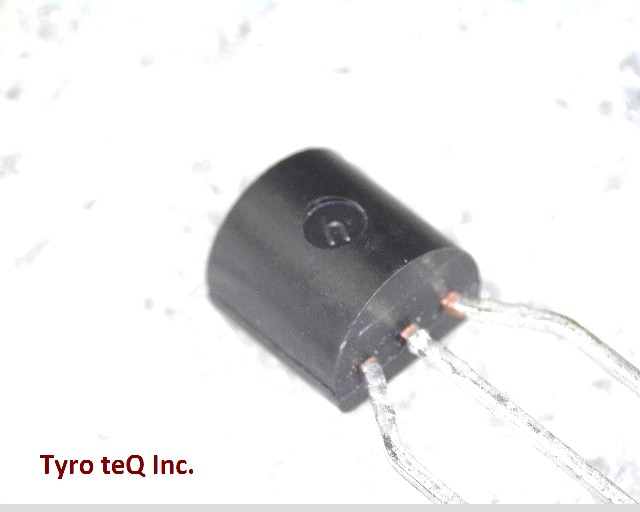

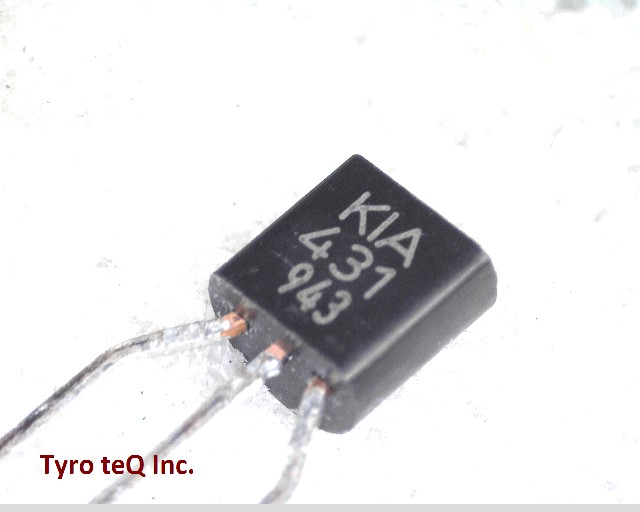

KIA431-AT/P

Name: KIA431-AT/P
Brand: KEC
SKU: 210099208-0000-0000-0000

KIA431-AT/P - KEC の商品詳細ページです。

２営業日以内に回答いたします

KIA431-AT/P の詳細情報

型番	KIA431-AT/P
メーカー	KEC
Analog IC - Other Type	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code	O-MBCY-W3
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Voltage-Max	2.55 V
Output Voltage-Min	2.44 V
Output Voltage-Nom	2.495 V
Package Body Material	METAL
Package Code	TO-92
Package Equivalence Code	SIP3,.03,50
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Screening Level	AEC-Q100
Supply Voltage-Max (Vsup)	2.55 V
Supply Voltage-Min (Vsup)	2.44 V
Supply Voltage-Nom (Vsup)	2.495 V
Surface Mount	NO
Technology	BIPOLAR
Temp Coef of Voltage-Max	888 ppm/Cel
Temperature Grade	INDUSTRIAL
Terminal Form	THROUGH-HOLE
Terminal Position	BOTTOM
Trim/Adjustable Output	NO V
Voltage Tolerance-Max	2.2 %
