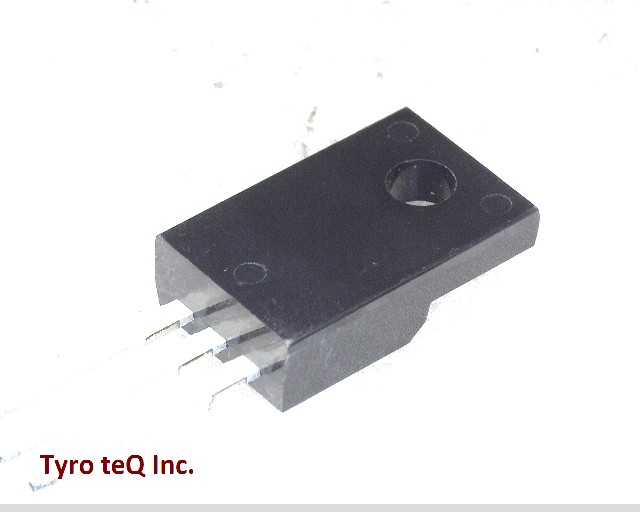

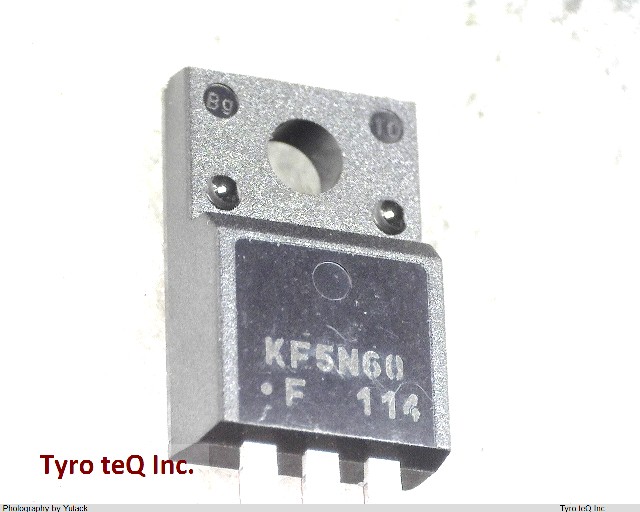

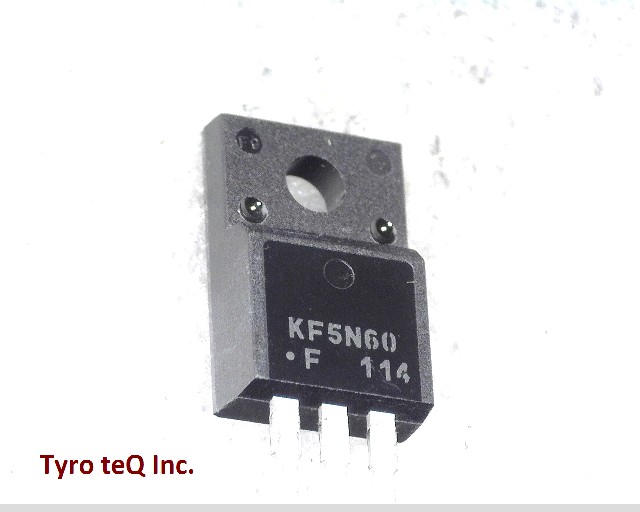

KF5N60F

Name: KF5N60F
Brand: KEC
SKU: 210096925-0000-0000-0000

KF5N60F - KEC の商品詳細ページです。

２営業日以内に回答いたします

KF5N60F の詳細情報

型番	KF5N60F
メーカー	KEC
Avalanche Energy Rating (Eas)	140 mJ
Case Connection	ISOLATED
Configuration	SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	600 V
Drain Current-Max (ID)	4.5 A
Drain-source On Resistance-Max	2 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code	TO-220AB
JESD-30 Code	R-PSFM-T3
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Polarity/Channel Type	N-CHANNEL
Pulsed Drain Current-Max (IDM)	13 A
Surface Mount	NO
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Transistor Application	SWITCHING
Transistor Element Material	SILICON
