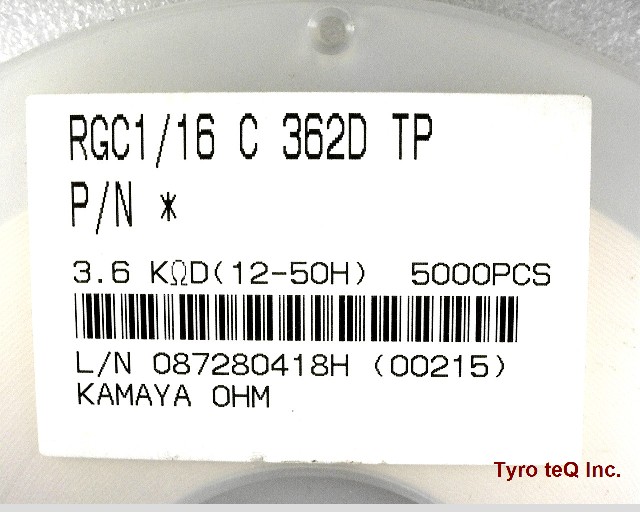

RGC1/16C362DTP

Name: RGC1/16C362DTP
Brand: KAMAYA
SKU: 400095922-0000-0000-0000

RGC1/16C362DTP - KAMAYA の商品詳細ページです。

２営業日以内に回答いたします

RGC1/16C362DTP の詳細情報

型番	RGC1/16C362DTP
メーカー	KAMAYA
Additional Feature	PRECISION
Construction	Retangular
J-STD-609 Code	e3
Mounting Feature	SURFACE MOUNT
Number of Terminals	2
Operating Temperature-Max	155 Cel
Operating Temperature-Max (Cel)	155
Operating Temperature-Min	-55 Cel
Operating Temperature-Min (Cel)	-55
Package Height	0.45 mm
Package Height (mm)	0.45
Package Length	1.6 mm
Package Length (mm)	1.6
Package Style	SMT Meter
Package Width	0.8 mm
Package Width (mm)	0.8
Packing Method	TR, PAPER, 7 INCH
Rated Power Dissipation (P)	0.1 W
Rated Power Dissipation (P) (W)	0.1
Rated Temperature	70 Cel
Rated Temperature (Cel)	70
Reference Standard	AEC-Q200
Resistance	3600 ohm
Resistance (ohm)	3600
Resistor Type	FIXED RESISTOR
Screening Level / Reference Standard	AEC-Q200
Size Code	0603
Technology	METAL GLAZE/THICK FILM
Temperature Coefficient	50 ppm/Cel
Temperature Coefficient (ppm/Cel)	50
Terminal Finish	TIN OVER NICKEL
Terminal Shape	WRAPAROUND
Tolerance	0.5 %
Tolerance (%)	0.5
Working Voltage	50 V
Working Voltage (V)	50
