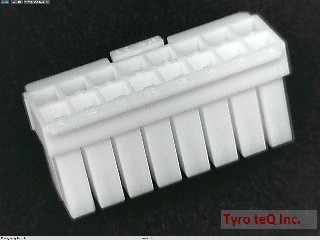

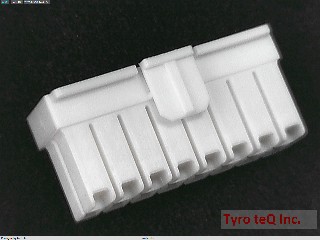

XLP-16V データシート

Name: XLP-16V
Brand: JST
SKU: 340025700-0000-0000-0000

XLP-16V - JST の商品詳細ページです。

２営業日以内に回答いたします

XLP-16V の詳細情報

型番	XLP-16V
メーカー	JST
データシート
Additional Feature	COMPATIBLE CONTACTS: SXF-01T-P0.7; SXF-41T-P0.7
Body Breadth	0.697 inch
Body Depth	0.736 inch
Body Length	1.622 inch
Body/Shell Style	PLUG
Connector Type	COMBINATION LINE CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulator Material	POLYAMIDE66
MIL Conformance	NO
Manufacturer Series	XL
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	90 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	10 A
Reference Standard	CSA; TUV
Termination Type	CRIMP
Total Number of Contacts	16
UL Flammability Code	94V-0
