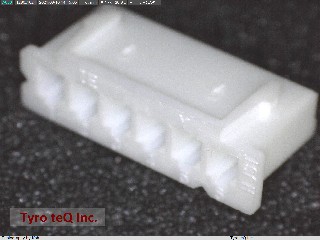

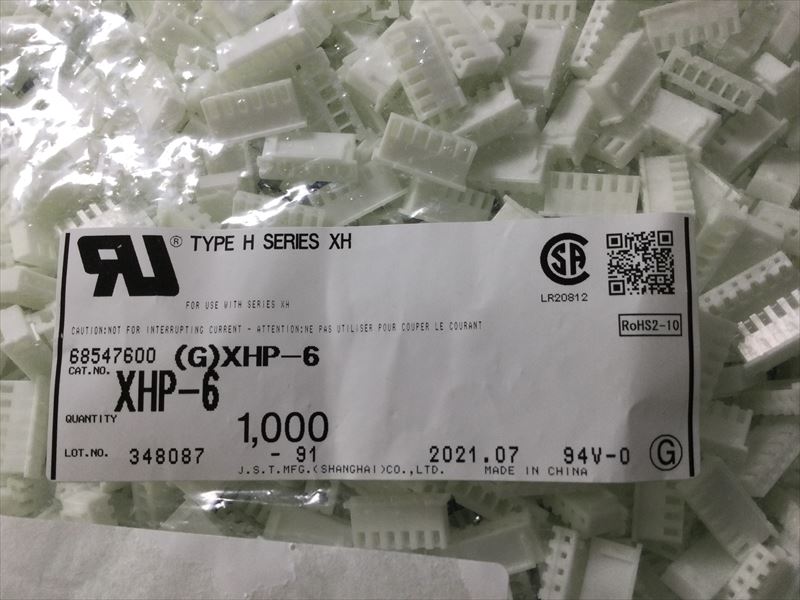

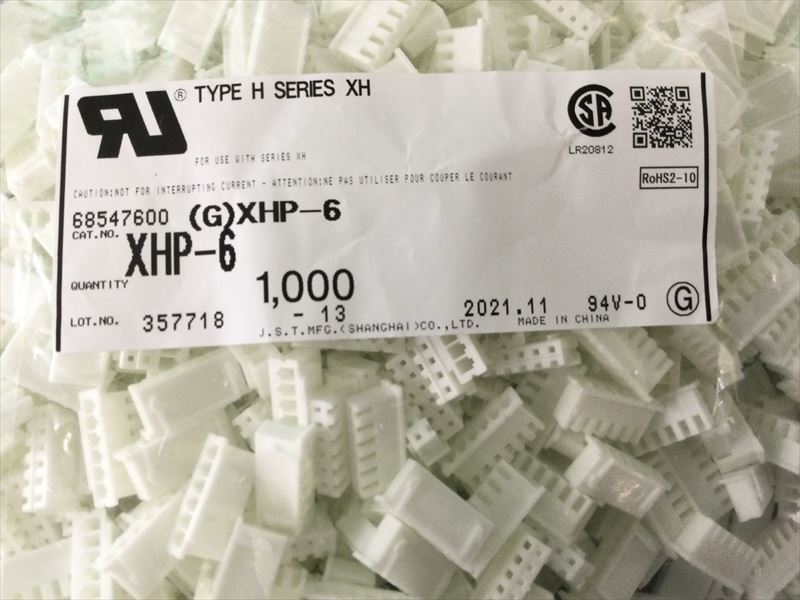

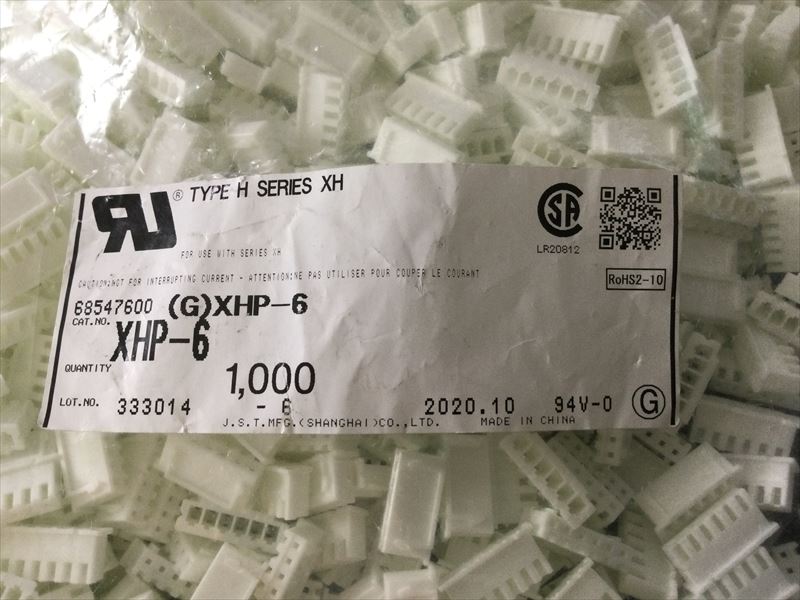

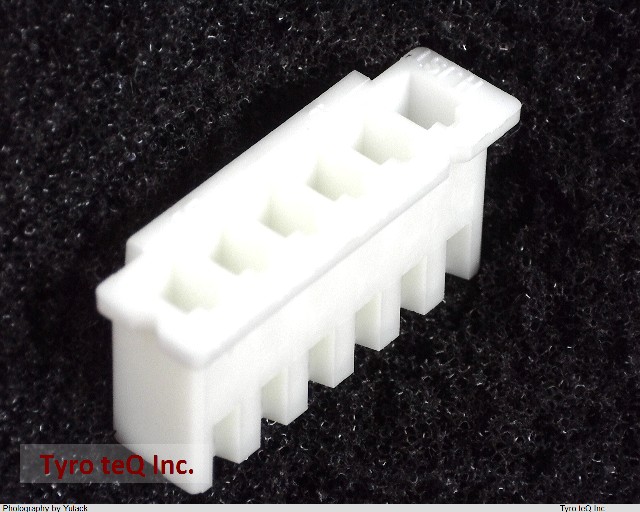

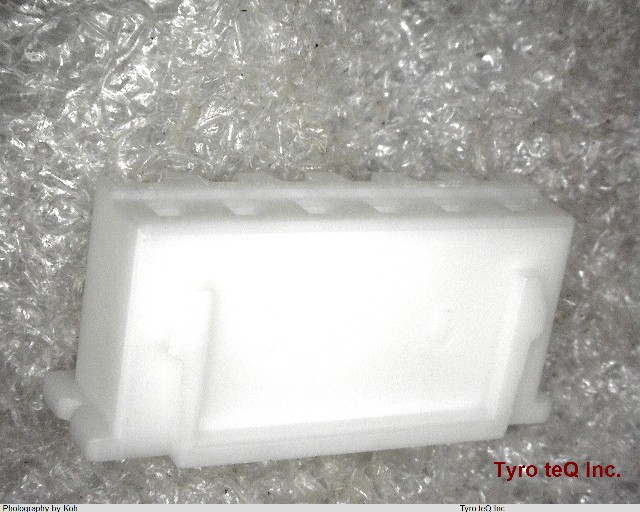

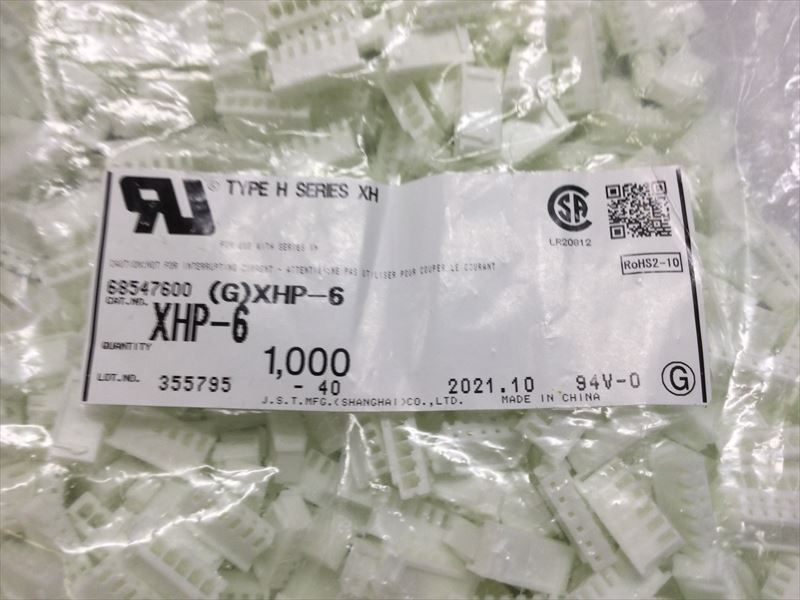

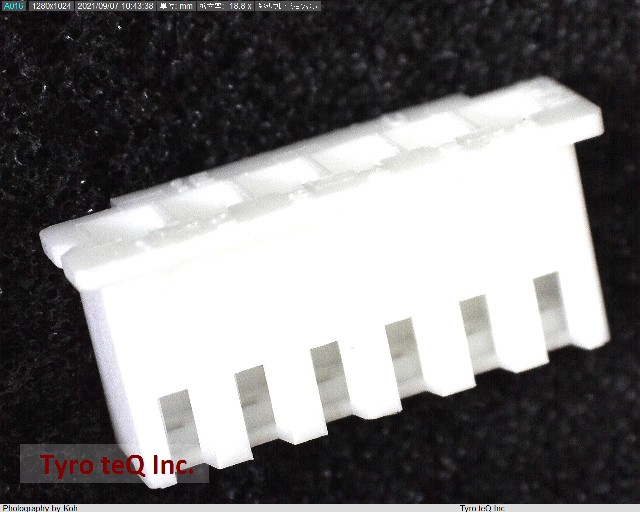

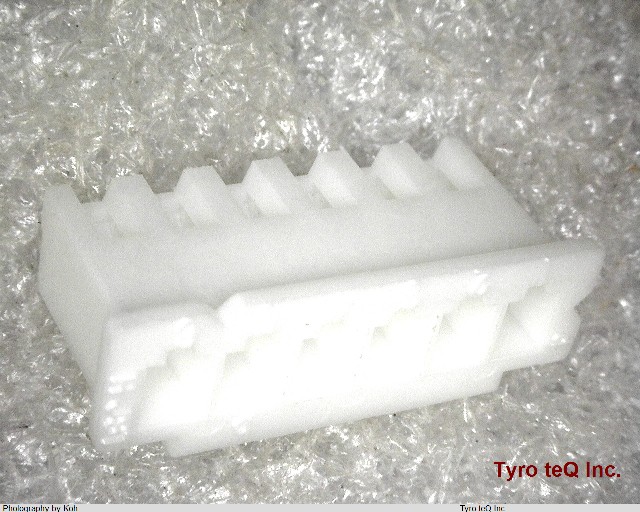

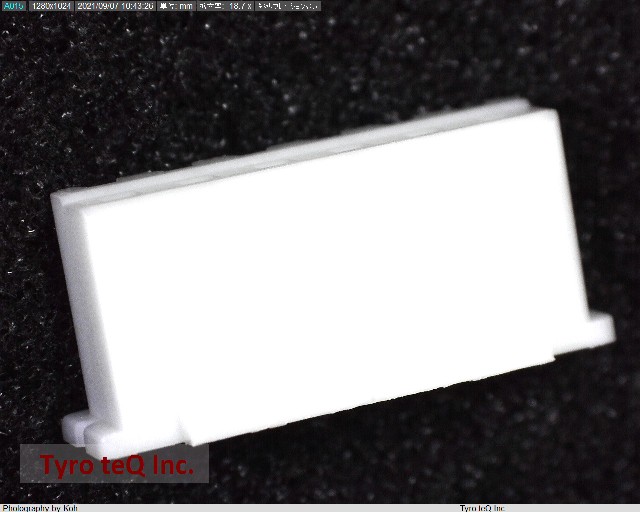

XHP-6 データシート

Name: XHP-6
Brand: JST
SKU: 340000246-0000-0000-0000

XHP-6 - JST の商品詳細ページです。

２営業日以内に回答いたします

XHP-6 の詳細情報

型番	XHP-6
メーカー	JST
データシート
Additional Feature	COMPATIBLE CONTACT: SXH-001T-P0.6
Body Breadth	0.224 inch
Body Depth	0.305 inch
Body Length	0.681 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	10 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Material	POLYAMIDE6
MIL Conformance	NO
Manufacturer Series	XH
Mating Contact Pitch	0.098 inch
Mating Information	MULTIPAL MATING PARTS AVAILBLE
Mixed Contacts	NO
Mounting Option 2	LOCKING
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	3 A
Reference Standard	UL
Termination Type	CRIMP
Total Number of Contacts	6
UL Flammability Code	94V-0
Wire Size-Max	22 AWG
Wire Size-Min	30 AWG
