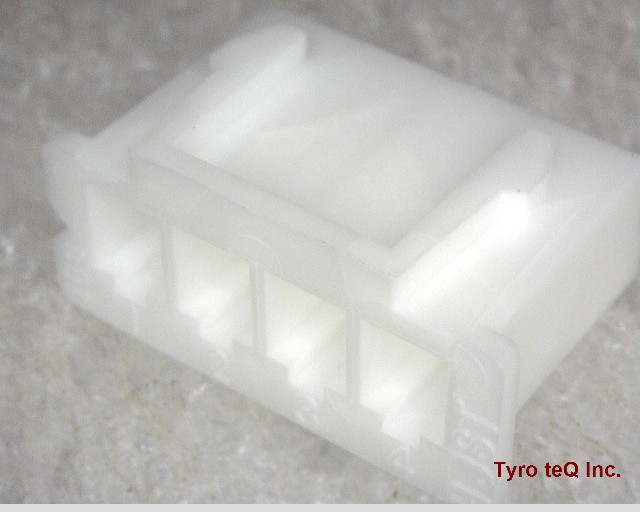

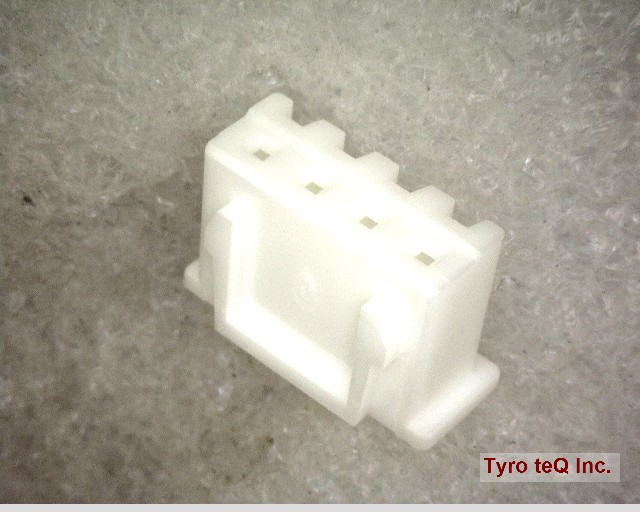

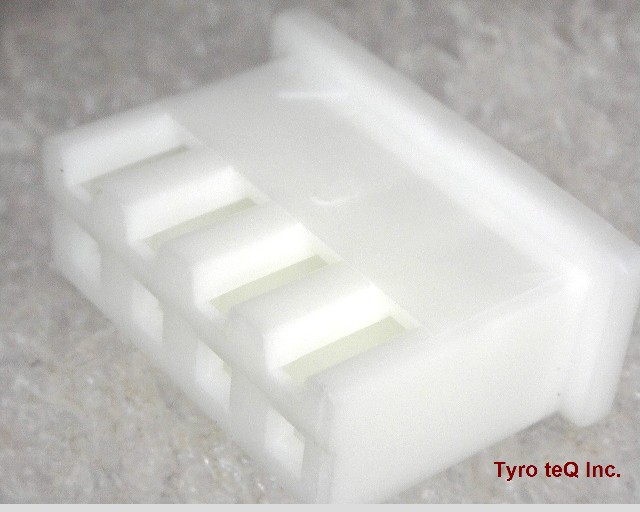

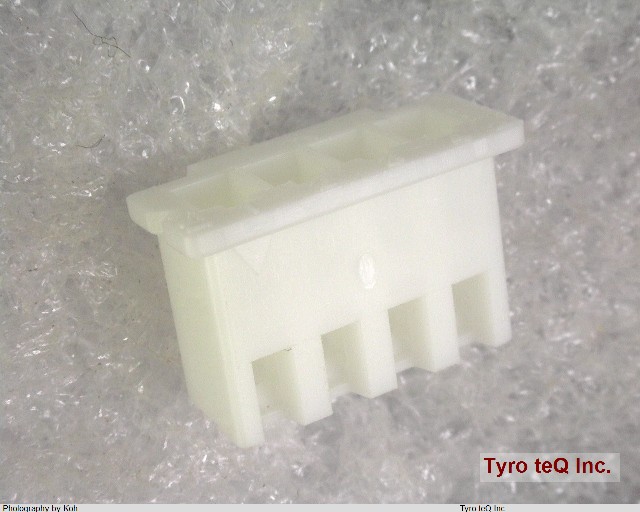

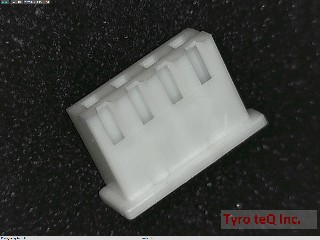

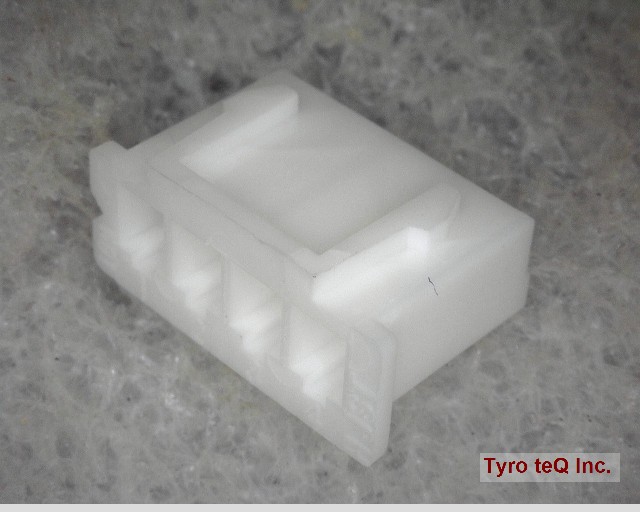

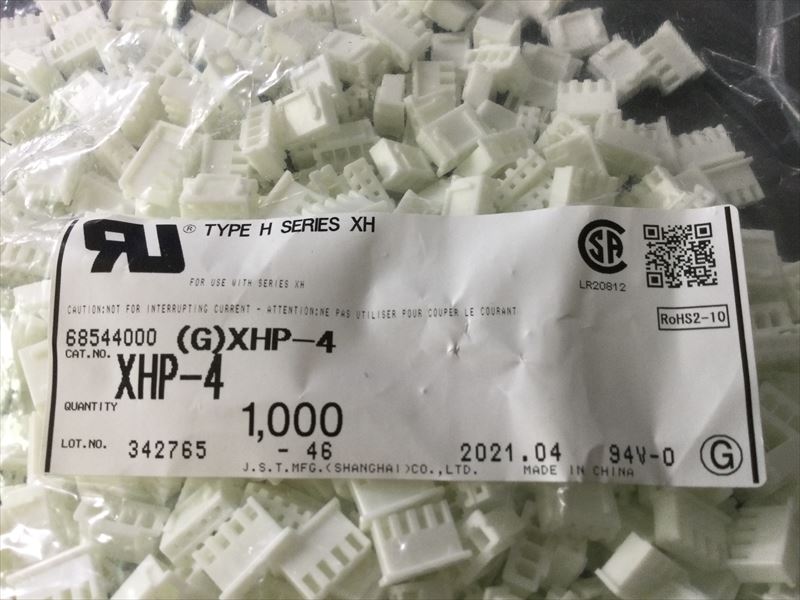

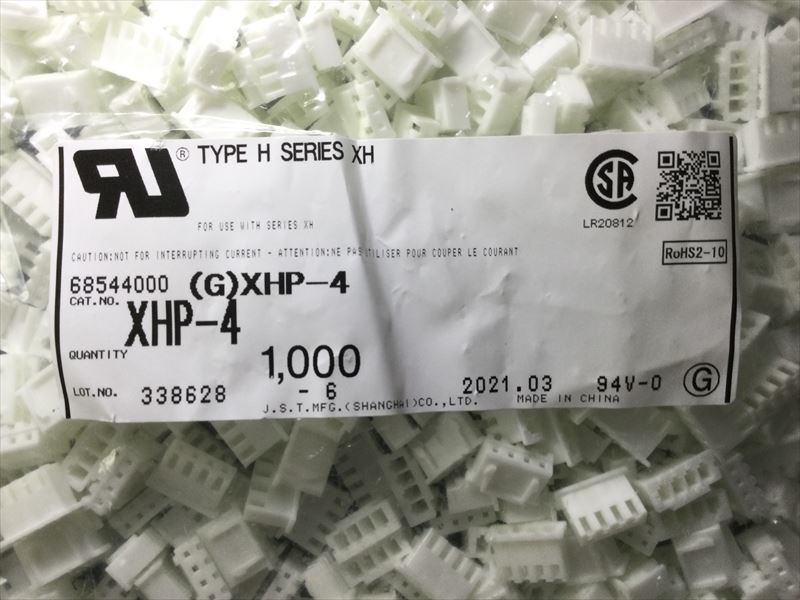

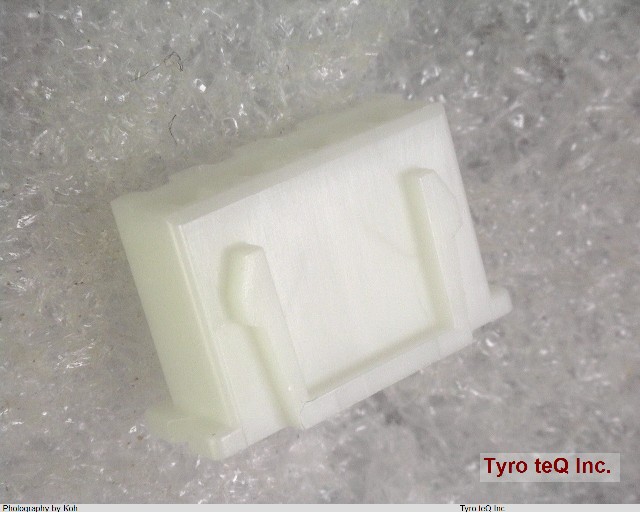

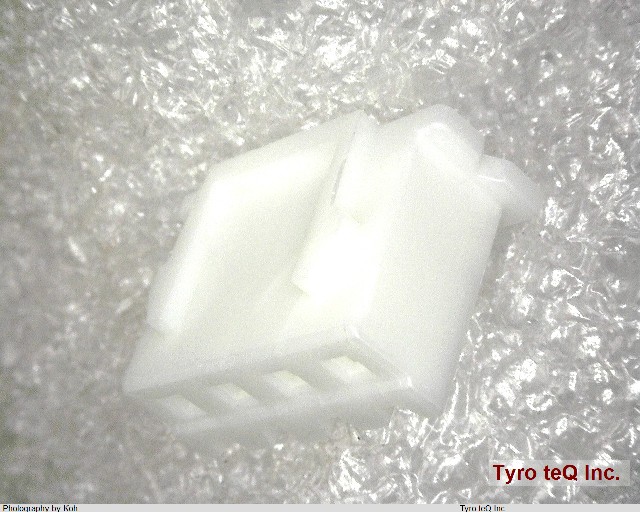

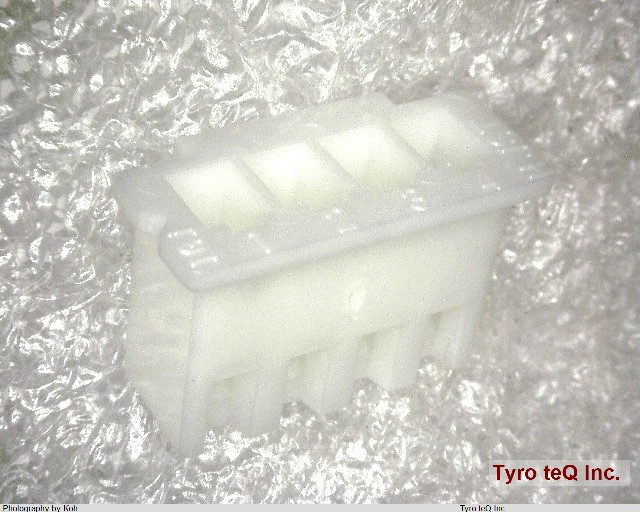

XHP-4 データシート

Name: XHP-4
Brand: JST
SKU: 340016188-0000-0000-0000

XHP-4 - JST の商品詳細ページです。

２営業日以内に回答いたします

XHP-4 の詳細情報

型番	XHP-4
メーカー	JST
データシート
Additional Feature	COMPATIBLE CONTACT: SXH-001T-P0.6
Body Breadth	0.224 inch
Body Depth	0.305 inch
Body Length	0.484 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	10 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	1000VAC V
Filter Feature	NO
Insulation Resistance	1000000000 ohm
Insulator Material	POLYAMIDE6
Mating Contact Pitch	0.098 inch
Mating Information	MULTIPAL MATING PARTS AVAILBLE
Mixed Contacts	NO
Mounting Option 2	LOCKING
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	3 A
Reference Standard	UL
Termination Type	CRIMP
Total Number of Contacts	4
UL Flammability Code	94V-0
Wire Size-Max	22 AWG
Wire Size-Min	30 AWG
