VHR-4N データシート

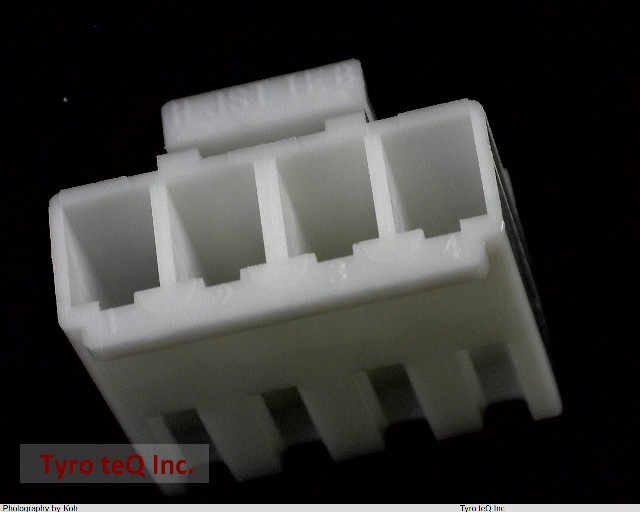

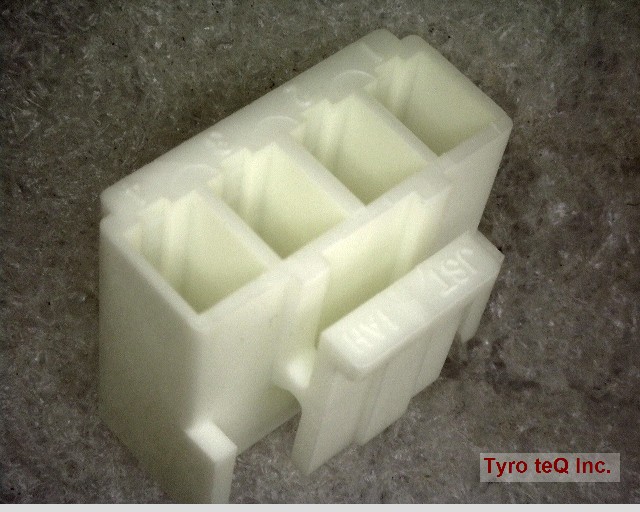

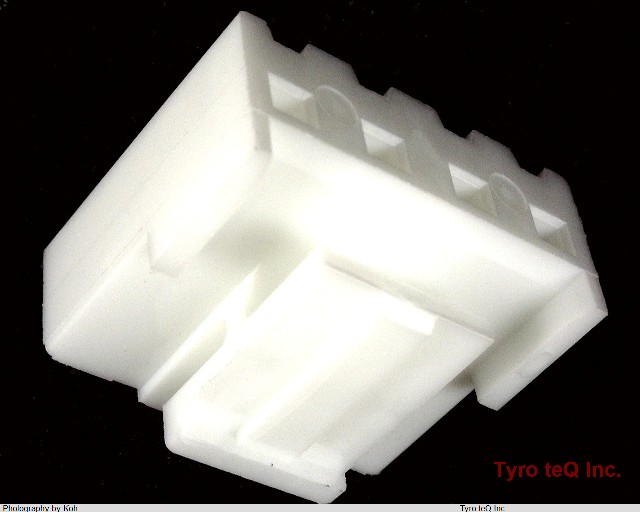

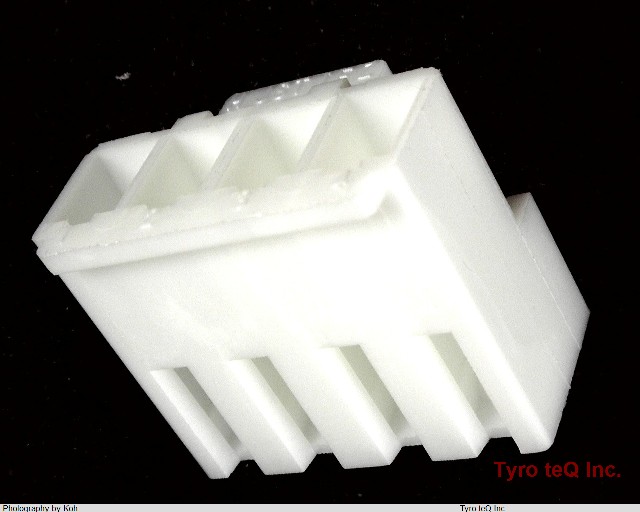

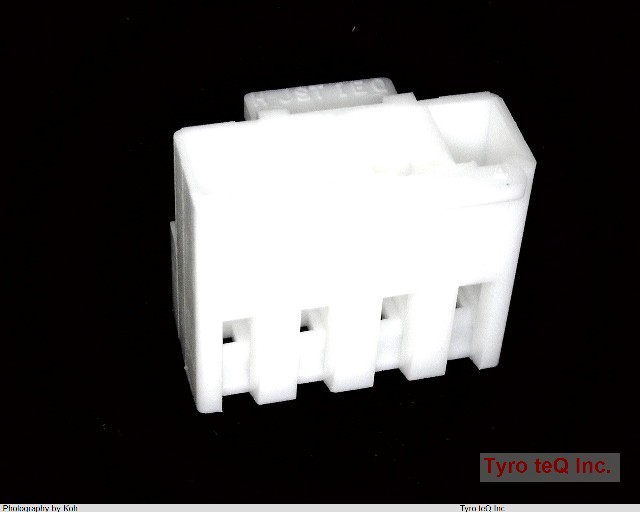

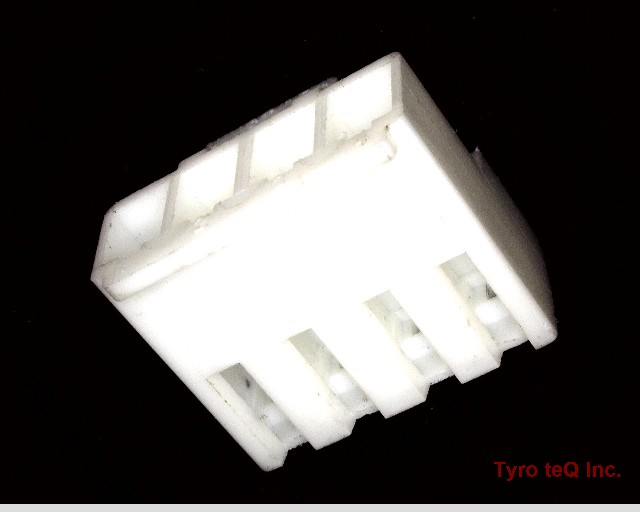

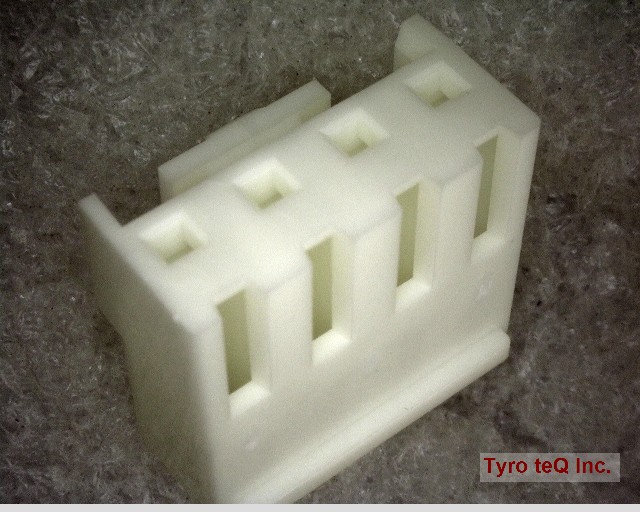

Name: VHR-4N
Brand: JST
SKU: 320023347-0000-0000-0000

VHR-4N - JST の商品詳細ページです。

２営業日以内に回答いたします

VHR-4N の詳細情報

型番	VHR-4N
メーカー	JST
データシート
Additional Feature	COMPATIBLE CONTACT: SVH-21T-P1.1
Body Breadth	0.413 inch
Body Depth	0.524 inch
Body Length	0.621 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1500VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	NATURAL
Insulator Material	POLYAMIDE
MIL Conformance	NO
Mating Contact Pitch	0.156 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Option 2	LATCHING
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
Reference Standard	UL,CSA,TUV
Termination Type	CRIMP
Total Number of Contacts	4
UL Flammability Code	94V-0
Wire Size-Max	16 AWG
Wire Size-Min	22 AWG
