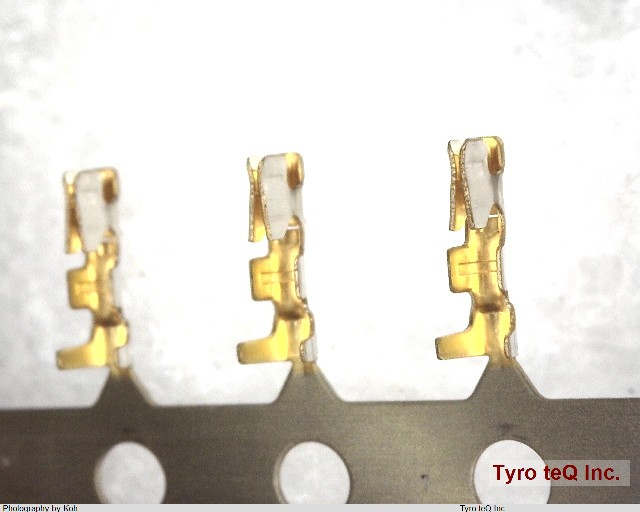

SSH-003GA-P0.2 データシート

Name: SSH-003GA-P0.2
Brand: JST
SKU: 290237986-0000-0000-0000

SSH-003GA-P0.2 - JST の商品詳細ページです。

２営業日以内に回答いたします

SSH-003GA-P0.2 の詳細情報

型番	SSH-003GA-P0.2
メーカー	JST
データシート
Approvals	CSA; UL V
Assembly Item Name	CONTACT
Cable Entry-Max	0.031 inch
Cable Entry-Min	0.016 inch
Connector Support Type	CONNECTOR ACCESSORY
Contact Gender	FEMALE
Contact Resistance	40 mohm
DIN Conformance	NO
IEC Conformance	NO
MIL Conformance	NO
Material	PHOSPHOR BRONZE
Mfr Name	J S T MFG CO LTD
Mfr P/N	SSH-003GA-P0.2
Mounting Style	STRAIGHT
New Category	Assembly Items
New Part Type	CONNECTOR_SUPPORT
Old Category	Terminals and Terminal Blocks
Old Part Type	TERMINALS_AND_TERMINAL_BLOCKS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Part Objectid	1791004581
Rated Current	1 A
Rated Voltage (AC)	50 V
Rated Voltage (DC)	50 V
Terminal Length	0.079 inch
Terminal Type	CRIMP
Wire Size-Max	28 AWG
Wire Size-Min	32 AWG
