SM03B-SRSS-TB データシート

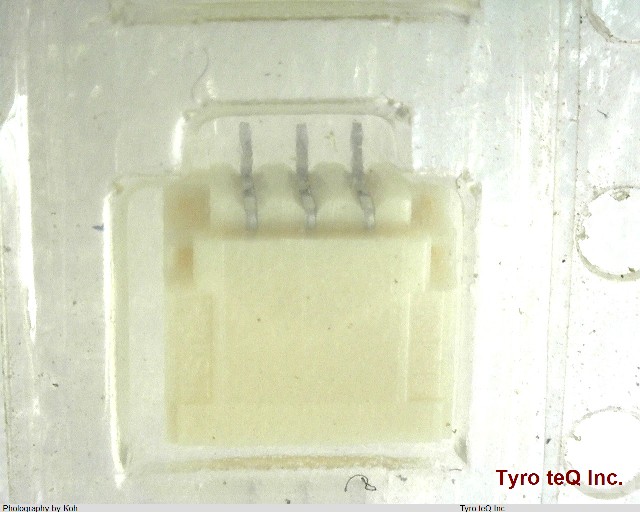

Name: SM03B-SRSS-TB
Brand: JST
SKU: 290000176-0000-0000-0000

SM03B-SRSS-TB - JST の商品詳細ページです。

２営業日以内に回答いたします

SM03B-SRSS-TB の詳細情報

型番	SM03B-SRSS-TB
メーカー	JST
データシート
Additional Feature	SIDE ENTRY
Body Breadth	0.114 inch
Body Depth	0.194 inch
Body Length	0.196 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	TIN OVER COPPER
Contact Finish - Termination	TIN COPPER
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	40 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Diameter-Min	0.015 inch
Insulation Resistance	100000000 ohm
Insulator Color	IVORY
Insulator Material	POLYAMIDE
JESD-609 Code	e2
MIL Conformance	NO
Mating Contact Pitch	0.039 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	1 A
Reference Standard	UL
Terminal Pitch	0.039 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	3
UL Flammability Code	94V-0
