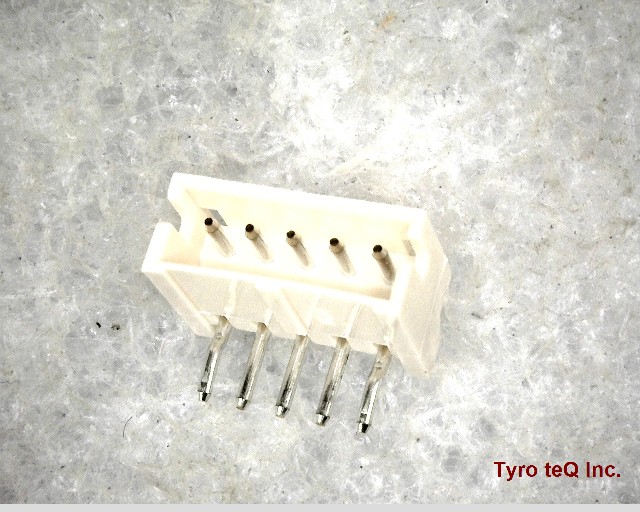

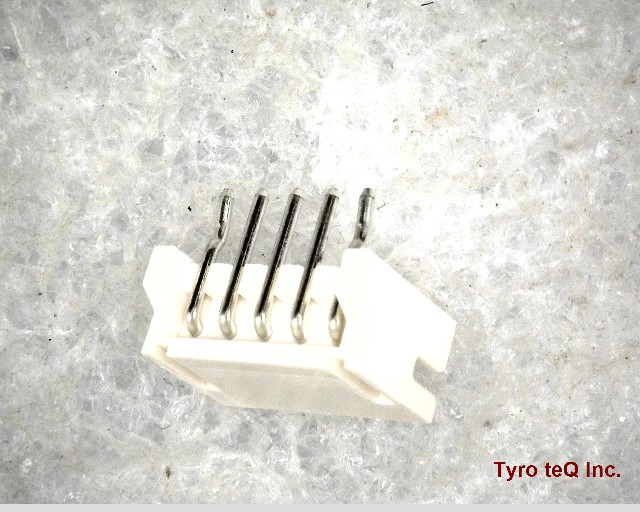

S5B-ZR(LF)(SN) データシート

Name: S5B-ZR(LF)(SN)
Brand: JST
SKU: 290227632-0000-0000-0000

S5B-ZR(LF)(SN) - JST の商品詳細ページです。

２営業日以内に回答いたします

S5B-ZR(LF)(SN) の詳細情報

型番	S5B-ZR(LF)(SN)
メーカー	JST
データシート
Body Breadth	0.138 inch
Body Depth	0.177 inch
Body Length	0.354 inch
Connector Type	BOARD CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Tin (Sn) - reflowed
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Contact Style	RND PIN-SKT
Dielectric Withstanding Voltage	500VAC V
Filter Feature	NO
Insulation Resistance	500000000 ohm
Insulator Color	IVORY
Insulator Material	GLASS FILLED POLYAMIDE66
JESD-609 Code	e3
Mating Contact Pitch	0.059 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	1 A
Reference Standard	CSA; UL
Terminal Length	0.106 inch
Terminal Pitch	1.5 mm
Termination Type	SOLDER
Total Number of Contacts	5
UL Flammability Code	94V-0
