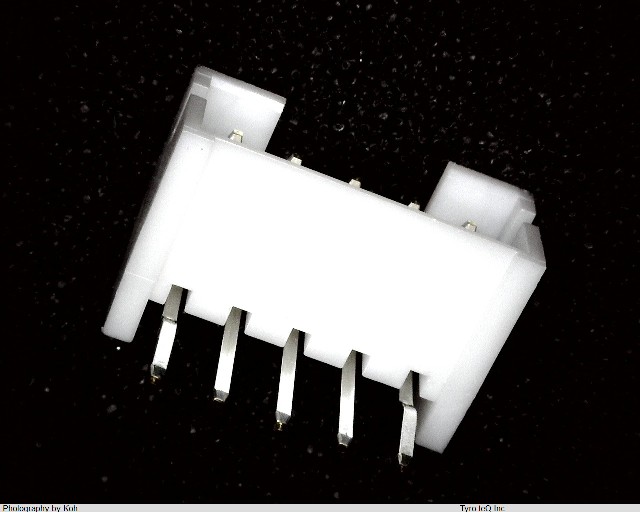

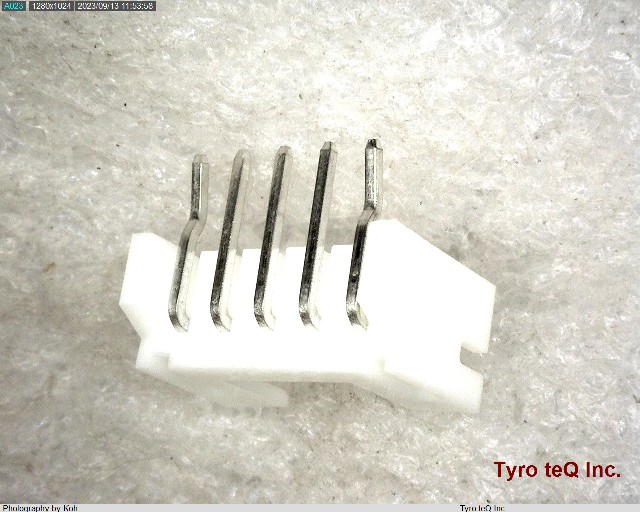

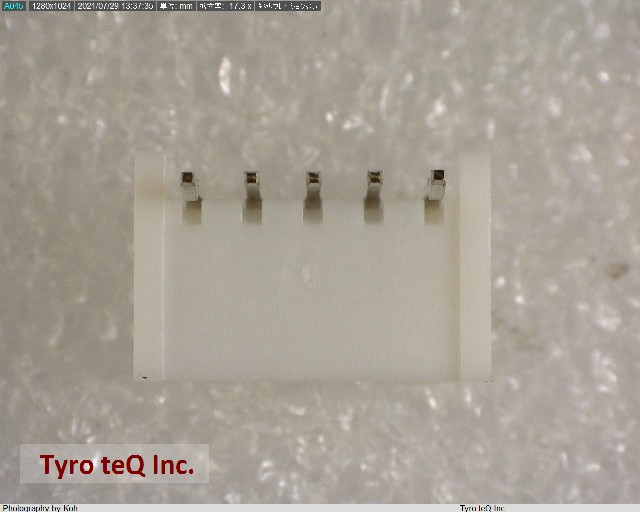

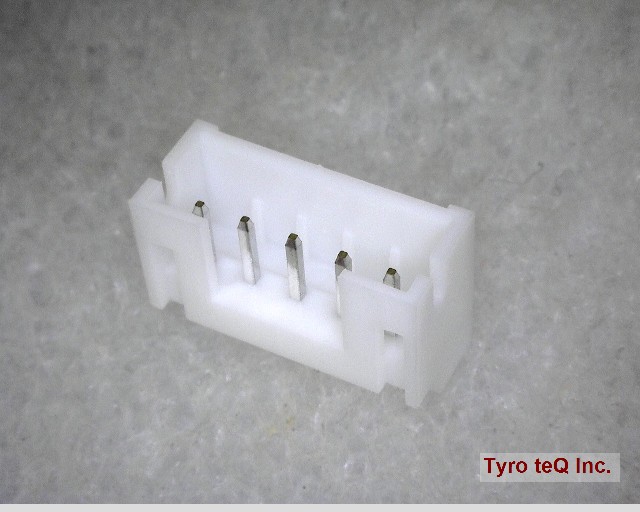

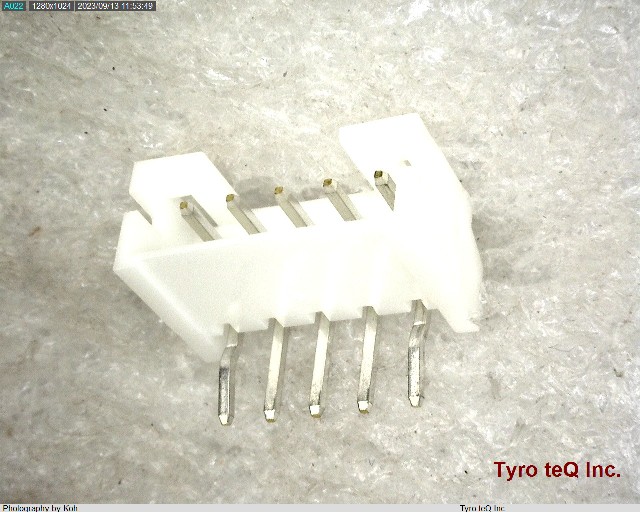

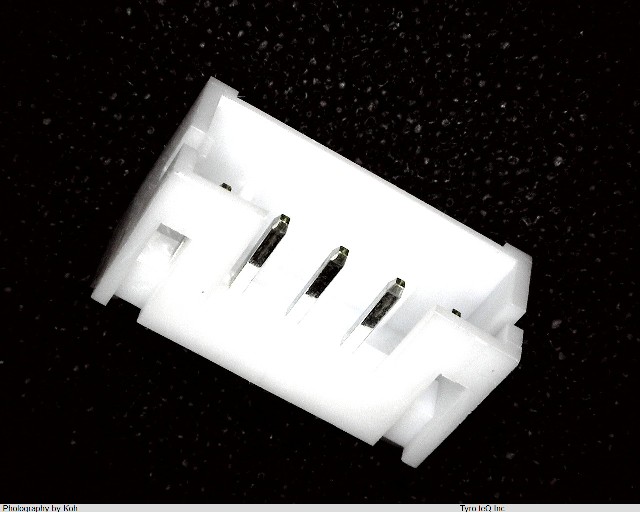

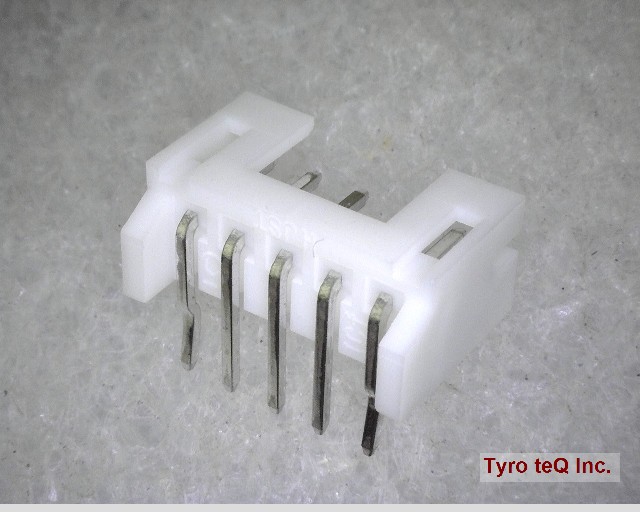

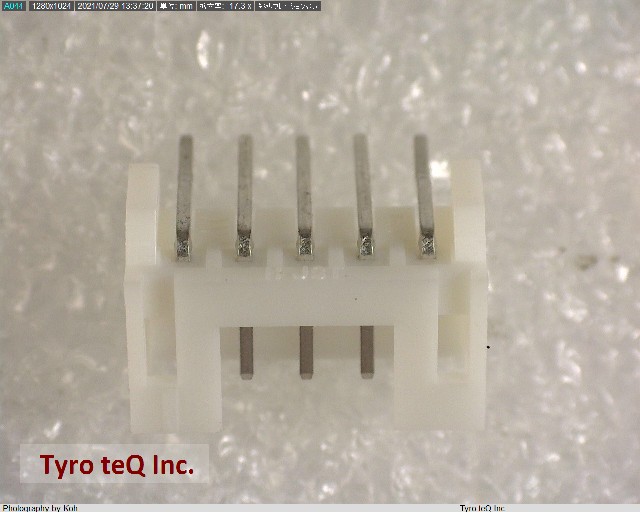

S5B-PH-K-S (LF)(SN) データシート

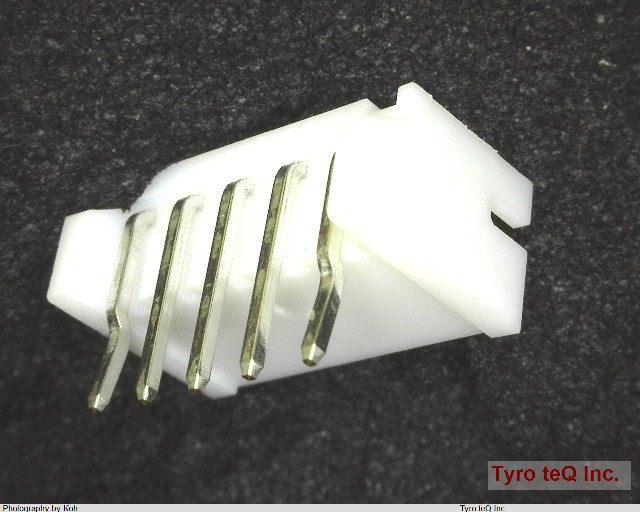

Name: S5B-PH-K-S (LF)(SN)
Brand: JST
SKU: 290409564-0000-0000-0000

S5B-PH-K-S (LF)(SN) - JST の商品詳細ページです。

２営業日以内に回答いたします

S5B-PH-K-S (LF)(SN) の詳細情報

型番	S5B-PH-K-S (LF)(SN)
メーカー	JST
データシート
Additional Feature	LOW PROFILE, UL
Body Breadth	0.189 inch
Body Depth	0.299 inch
Body Length	0.468 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	TIN OVER COPPER
Contact Finish - Termination	Tin (Sn)
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	10 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	800VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	NATURAL
Insulator Material	PA
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.079 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	2 A
Reference Standard	CSA; TUV
Terminal Length	0.134 inch
Terminal Pitch	2 mm
Termination Type	SOLDER
Total Number of Contacts	5
UL Flammability Code	94V-0
