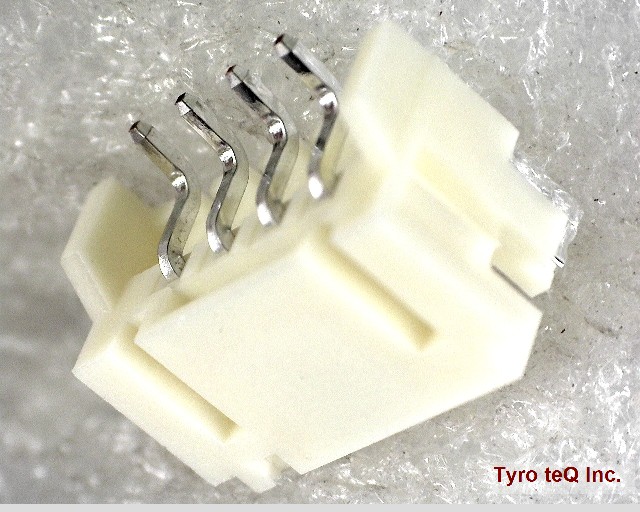

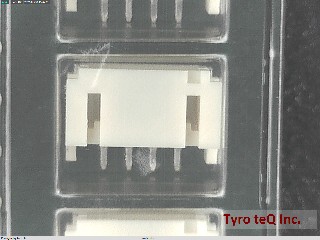

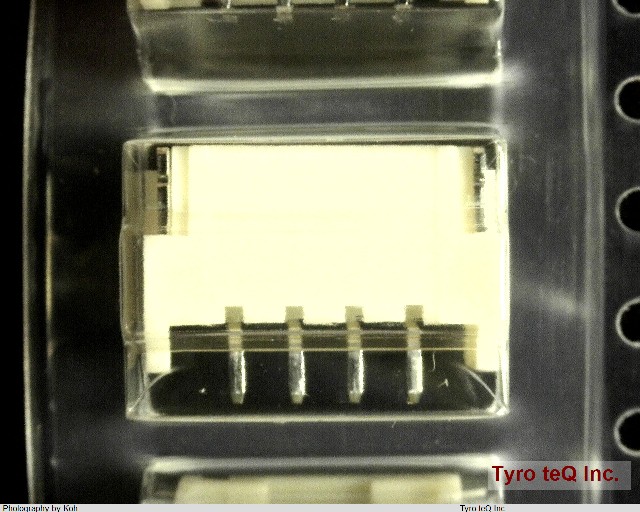

S4B-PH-SM4-TB(LF)(SN) データシート

Name: S4B-PH-SM4-TB(LF)(SN)
Brand: JST
SKU: 290433362-0000-0000-0000

S4B-PH-SM4-TB(LF)(SN) - JST の商品詳細ページです。

２営業日以内に回答いたします

S4B-PH-SM4-TB(LF)(SN) の詳細情報

型番	S4B-PH-SM4-TB(LF)(SN)
メーカー	JST
データシート
Additional Feature	SIDE ENTRY
Body Breadth	0.216 inch
Body Depth	0.299 inch
Body Length	0.468 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	TIN OVER COPPER
Contact Finish - Termination	Tin (Sn) - reflowed
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Filter Feature	NO
IEC Conformance	NO
Insulator Material	POLYAMIDE6T
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.079 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	1
Number of Rows Loaded	1
Option	GENERAL PURPOSE
Terminal Pitch	2 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	4
UL Flammability Code	94V-0
