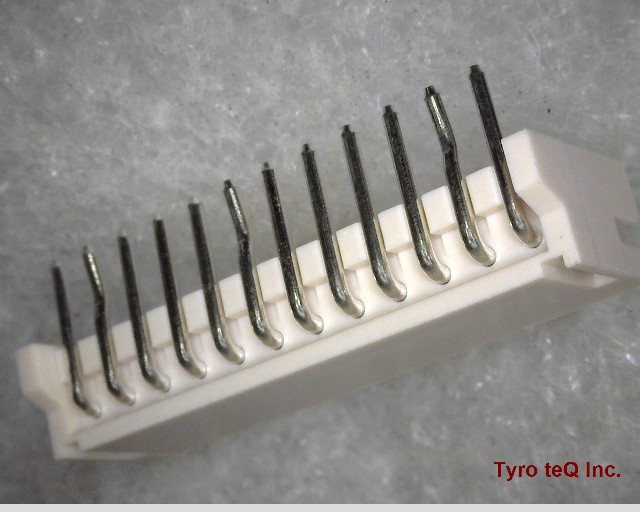

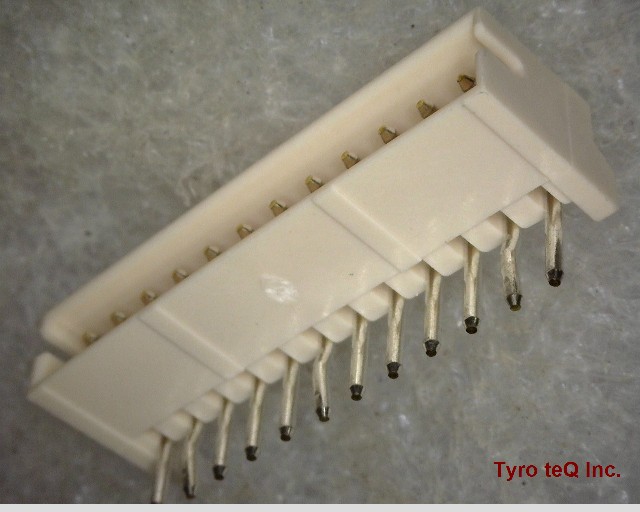

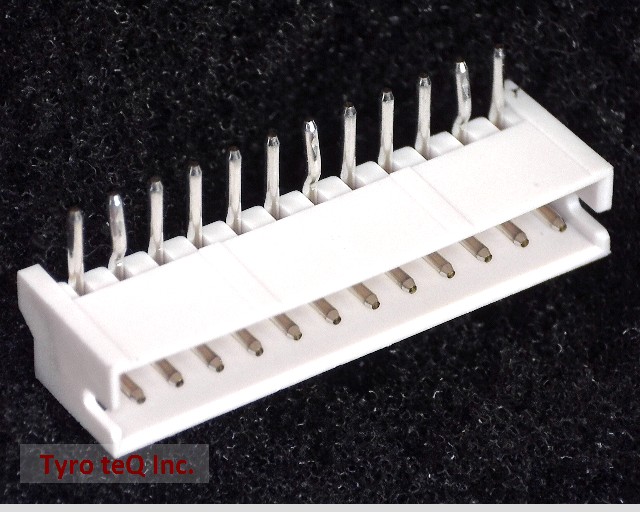

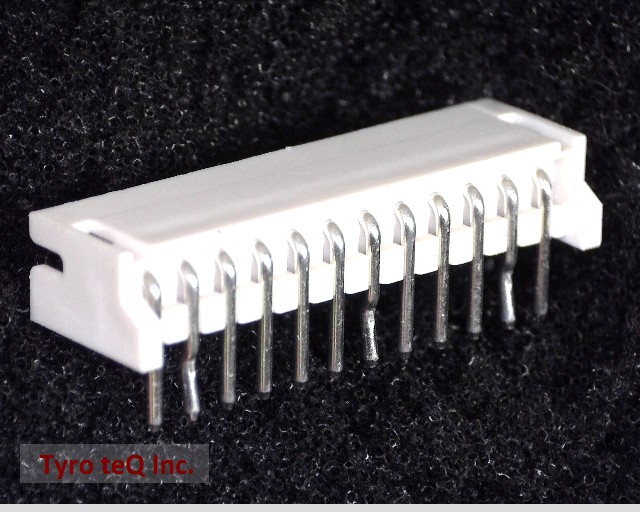

S12B-ZR(LF)(SN) データシート

Name: S12B-ZR(LF)(SN)
Brand: JST
SKU: 290226786-0000-0000-0000

S12B-ZR(LF)(SN) - JST の商品詳細ページです。

２営業日以内に回答いたします

S12B-ZR(LF)(SN) の詳細情報

型番	S12B-ZR(LF)(SN)
メーカー	JST
データシート
Body Breadth	0.146 inch
Body Depth	0.236 inch
Body Length	0.768 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Tin (Sn)
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	RND PIN-SKT
Dielectric Withstanding Voltage	500VAC V
Filter Feature	NO
Insulation Resistance	500000000 ohm
Insulator Color	IVORY
Insulator Material	GLASS FILLED POLYAMIDE66
JESD-609 Code	e3
Mating Contact Pitch	0.059 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	1 A
Terminal Length	0.106 inch
Terminal Pitch	1.5 mm
Termination Type	SOLDER
Total Number of Contacts	12
UL Flammability Code	94V-0
